Reliable NTP servers for synchronised time

Dual time source NTP servers [NTS-6002-GPS-MSF & NTS-8000-GPS-MSF]

Accurate time is essential for businesses to be profitable and for organisations to be effective. Reliable NTP servers receive the time from a satellite (GPS) and radio (MSF) source and deliver the time to the clocks, phones and PCs which your employees use. You benefit from:

  • improved time-keeping
  • increased productivity
  • synchronised business operations
  • reliable time – if the radio or GPS source fails, the other continues to provide accurate time

Contact Galleon to discuss the best dual time source server for your needs.


How do reliable NTP servers work?

A dual source network time protocol (NTP) server receives the time from a radio and GPS source. The server will always take the time from the strongest source, and if one source fails then the other will compensate. Consequently, Galleon’s NTP servers are ideal when you need the most accurate and reliable time possible.

Ideally, you will place the radio antenna outside. However, it is possible to position the radio antenna inside a building, near a window. The GPS antenna must be positioned outside with a clear view of the sky, for instance on a rooftop. The GPS antenna receives a signal from up to 12 satellites for maximum accuracy.

You can use an additional extension kit to position radio and GPS antennas up to 1000 metres away from the NTP server. This allows you to place antennas in the best location, wherever you are.

Galleon’s reliable NTP servers connect to your network via an Ethernet connection and deliver highly accurate and synchronised time to the clocks, phones, PCs and other devices also connected to your network.

Hundreds of devices can receive time from a single NTP server.

Two models of reliable NTP servers are available:

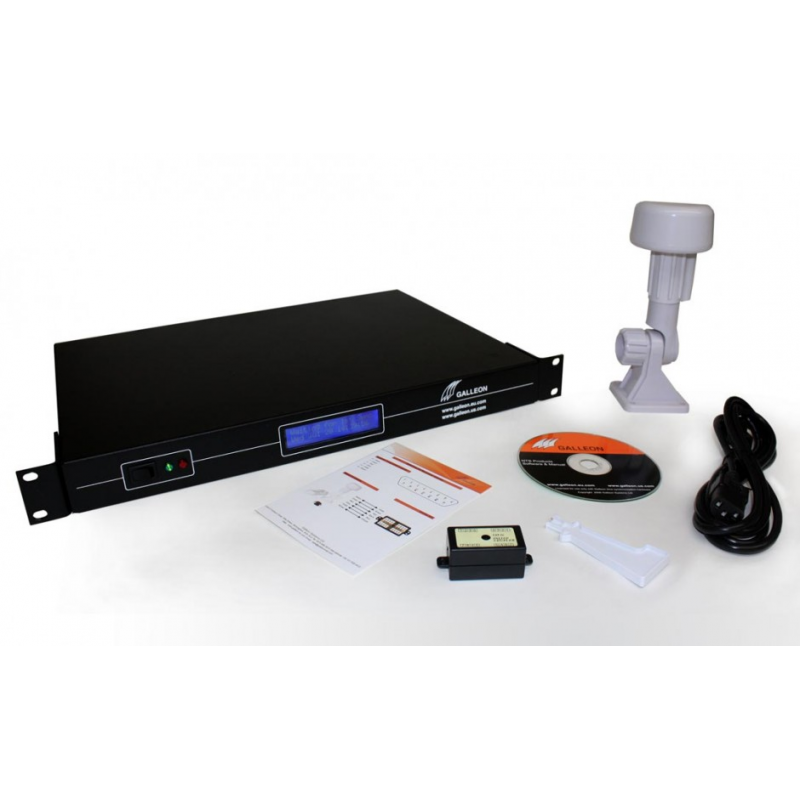

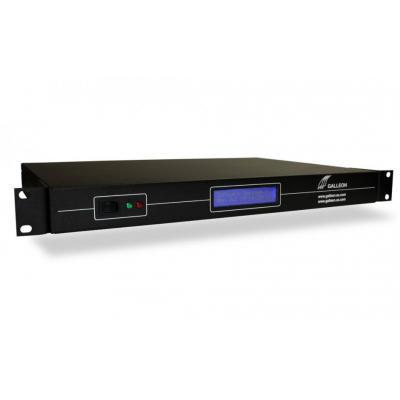

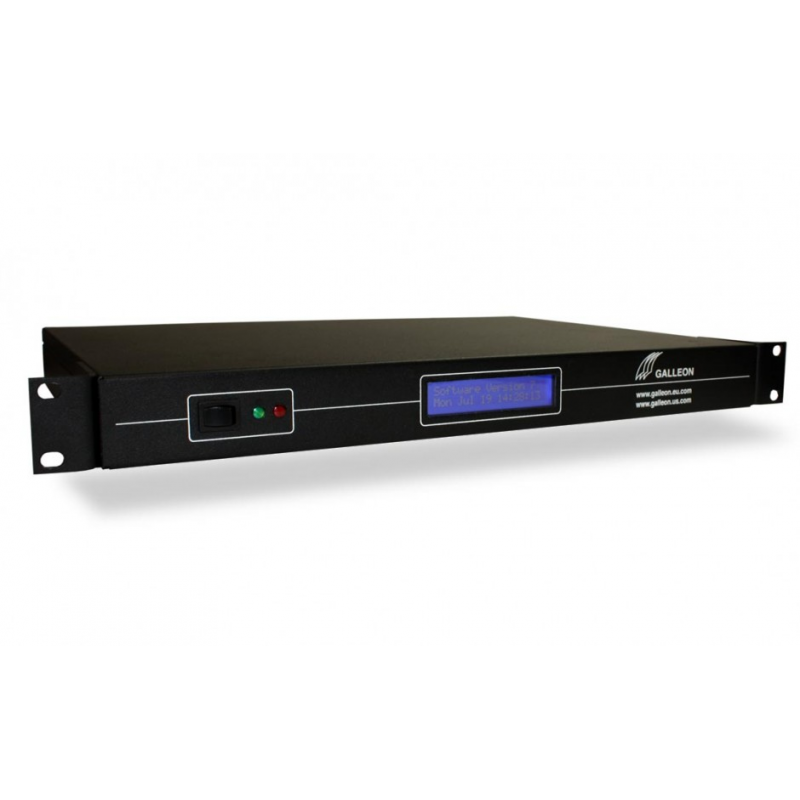

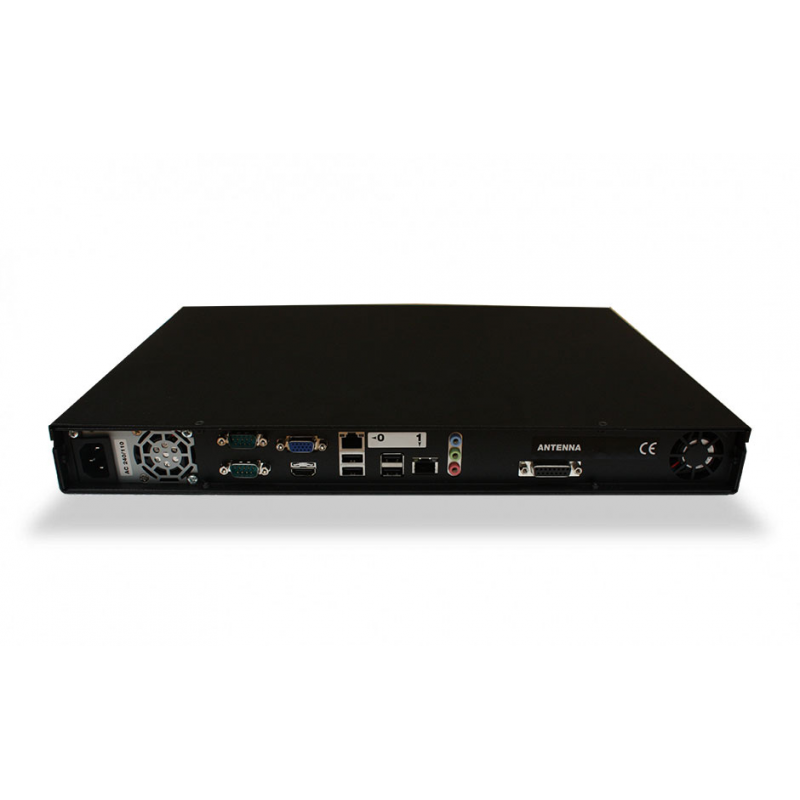

  • NTS-6002: supplies time to two networks. Uses a Linux operating system.

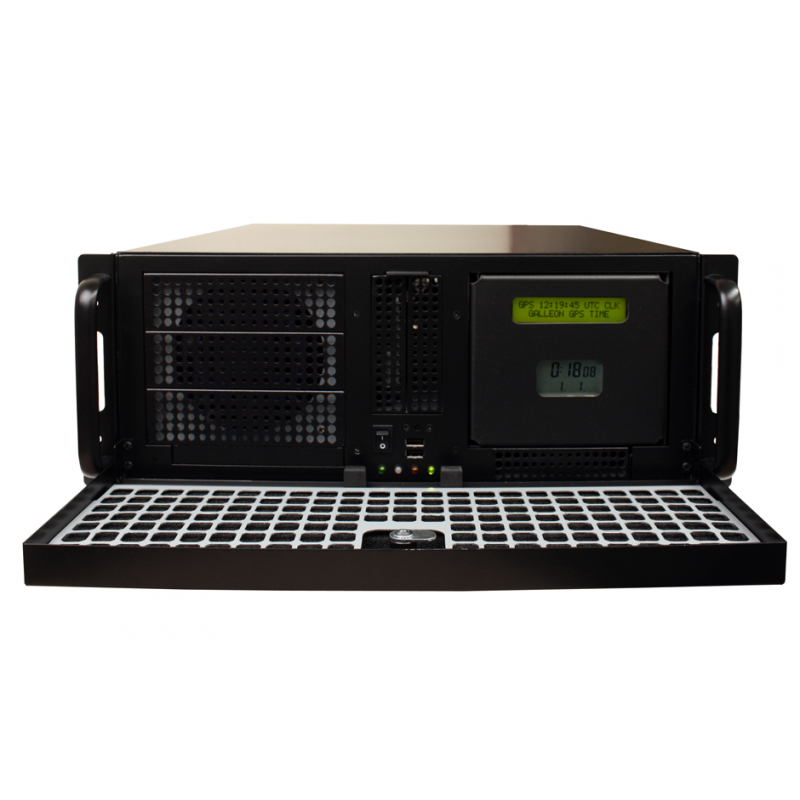

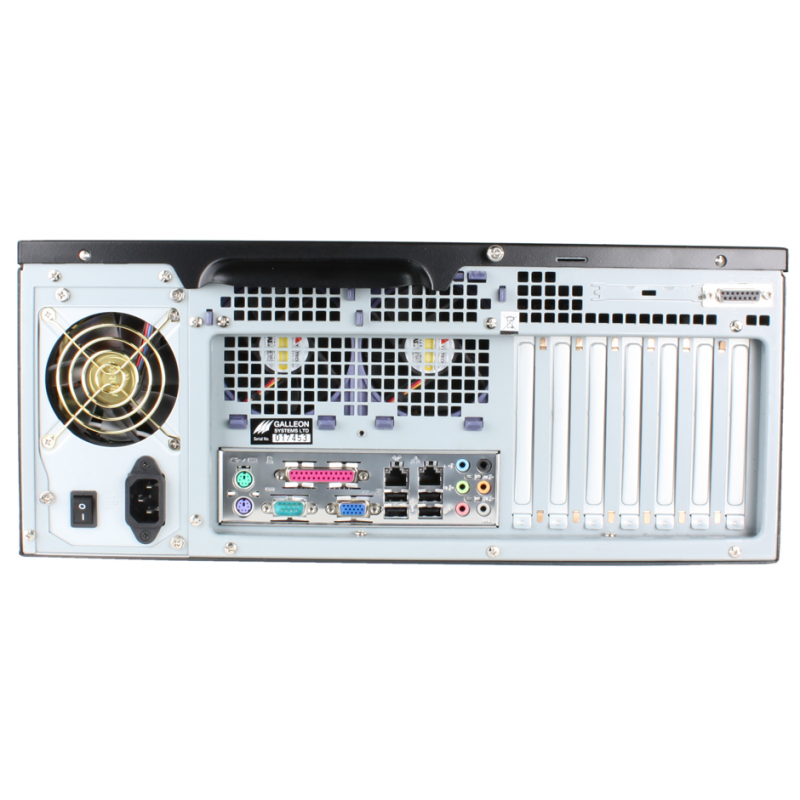

  • NTS-8000: Supplies time to six networks. Uses a Windows operating system.

All galleon NTP servers come with a six-year warranty and lifetime customer support.

NTP servers are ideal for a range of locations

Galleon’s reliable NTP servers are used worldwide by companies such as Ford, Rolls Royce, HP, Shell and Vodafone, and are suitable for any location that needs accurate time, such as:

  • Offices
  • Warehouses
  • Factories
  • Transport hubs
  • Shipping depots
  • Schools
  • Hospitals
  • Banks
  • Datacentres

Technical specifications

NTS-6002 NTS-8000

Receiver

GPS antenna

Radio antenna

GPS antenna

Radio antenna
Timing accuracy Network: ± 10 milliseconds, typical
GPS/radio: <1>
Network: ± 12 milliseconds, typical
GPS/radio: <1>

NTP time requests

>500,000 requests per minute >3,000 requests per minute

Supported networks

Two networks Six networks

Mount

19 inch rackmount 19 inch rackmount

Dimensions (height x width x depth)

45mm × 425mm × 309mm

Operating system

Linux

Windows

Protocols

NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections Multiple (up to 6) RJ-45 Network Connection 10/100 MBit
Product code NTS-6002-GPS-MSF NTS-8000-GPS-MSF

Contact Galleon to discuss the best reliable NTP server for your needs.
