Galleon Systems SNTP server UK

TS-900-GPS network time server [TS-900-GPS]

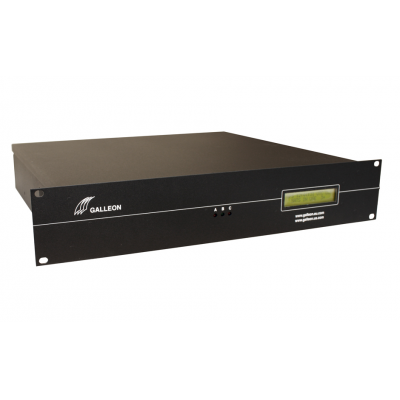

sntp server uk - TS-900 front view
sntp server uk - TS-900 rear view

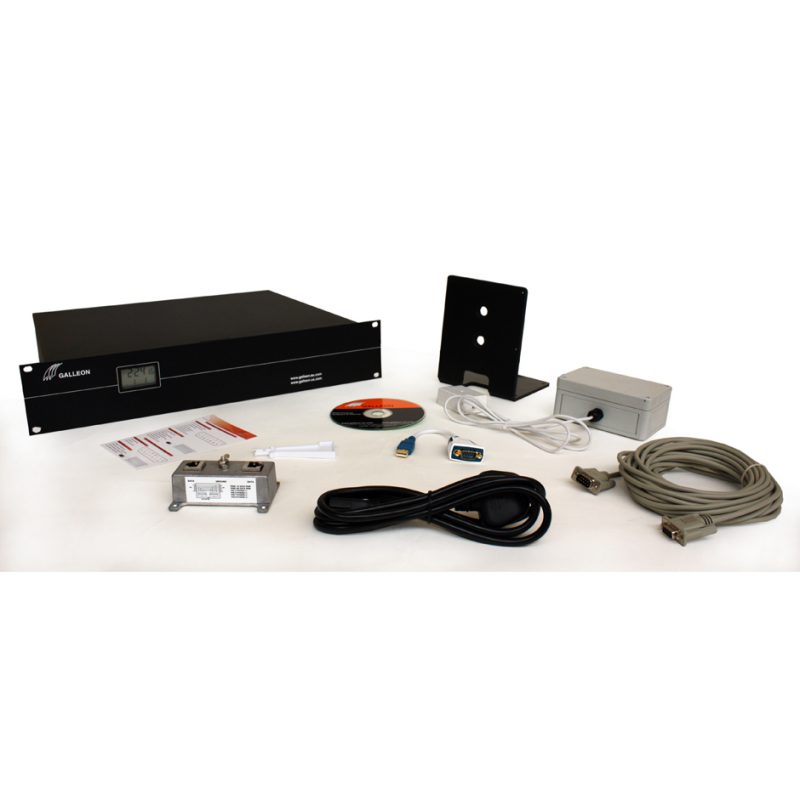

sntp server uk - TS-900 contents of box

Rack-mount GPS clock, antenna and NTP server software to convert an existing Windows (XP, 7, 10, 2008, 2012, 2016) PC to a reliable stratum 1 time server.

  • Installs as a service on a Windows server adding stratum 1 NTP time server functionality
  • Supports NTP and SNTP compatible clients
  • Front panel display to easily assess time and satellite status
  • GPS active antenna + 10m cable
  • Extension box and wiring tool included - GPS antenna cable length can be extended up to 1,000m (3,000ft) if required
  • Syslog error reporting
  • Email warning if GPS synchronisation is lost

Contact Galleon Systems for more information about SNTP server UK accurate time.


TS-900-GPS SNTP server UK

The TS-900-GPS network time server solution consists of a GPS clock, GPS antenna and TimeSync software. The GPS clock is attached to a windows PC and the supplied TimeSync software once installed configures the machine as a stratum 1 NTP time server. A two-line display on the TS-900 unit shows run-time information for the GPS subsystem and UTC time.

Sitting safely behind your company firewall the TS-900 provides an elegant network timing solution allowing a Windows server or a domain controller to supply accurate, secure UTC time to any other machine or digital clock on your network.

Key Benefits

  • Installs as a service on a Windows Server adding Stratum 1 NTP time server functionality
  • Supports NTP and SNTP compatible clients
  • Front panel display to easily assess time and satellite status
  • GPS active antenna + 10m cable Extension box and wiring tool included - GPS antenna cable length can be extended up to 1,000m (3,000ft) if required
  • Syslog error reporting
  • Email warning if GPS synchronisation is lost 3 years warranty Lifetime technical support by phone or email

SNTP server UK technical specifications

Type of receiver Active GPS antenna 12 channel
Mounting (GPS Clock) 19" (2U) rackmount
Mounting (Antenna) Wall mounting bracket
Display LCD, 2 x 20 characters, with backlight
Network interface

Via a Windows server or workstation

Interface to server RS232 serial interface. (USB optional)
Power supply 85 - 260V, 47 - 63Hz
Working temperature 0 - 50°C / 32 - 122°F
Humidity Max. 85%
Timing accuracy

Network: +/- 20 milliseconds

Typical GPS: 1 microseconds, relative to UTC
Signal (GPS) accuracy <1>

What's in the box?

  • SNTP server UK TS-900 unit + power lead
  • GPS antenna (with a 10m/8 Core Cable - not shown) + power supply Instruction manual NTP software CD
  • Junction box (to extend antenna cable - if necessary)
  • IDC cable tool (to insert extension cable into the junction box- if necessary)

Use the form below to contact Galleon to request more information.


Contact Galleon Systems
