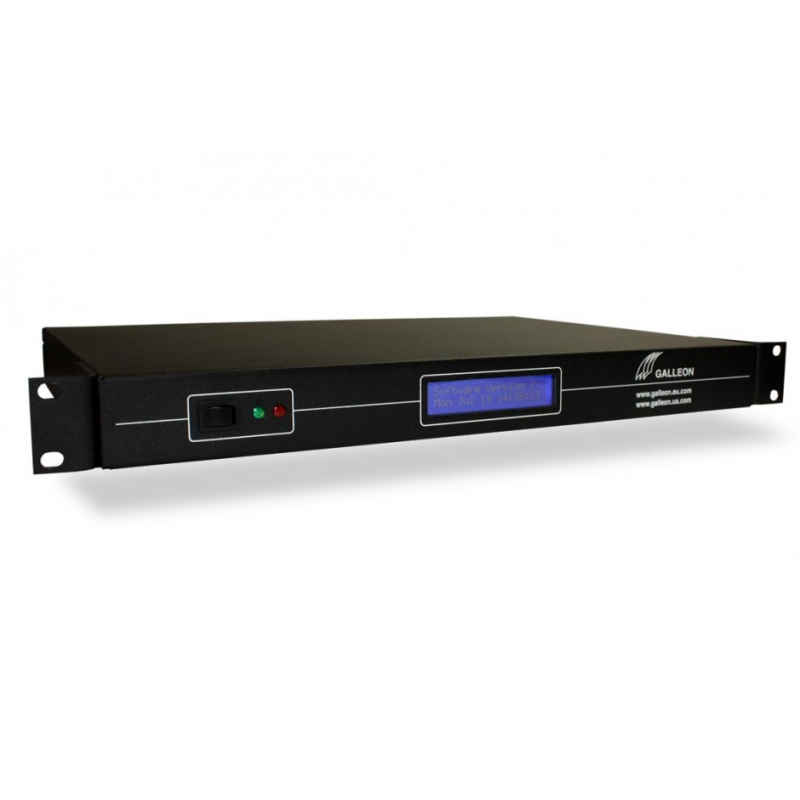

Stratum 1 GPS NTP time server

NTP time server [NTS-6002-GPS]

The GPS NTP time server from Galleon Systems incorporates a GPS time receiver and a stratum 1 NTP time server. The server, a Linux based operating system, connects to your network directly via a CAT5 ethernet cable.

Galleon Systems offers your business a dedicated network time protocol server, which operates from inside your firewall. This ensures you receive accurate time without affecting your cyber security.

Contact us now for more information.

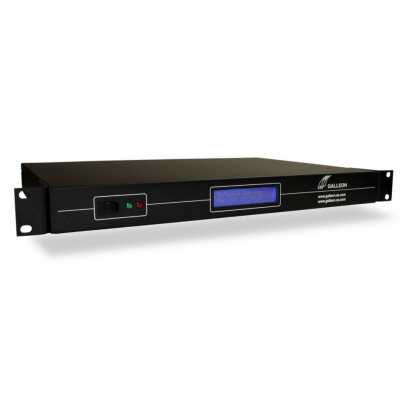

GPS NTP time server


  • Secure stratum 1 NTP time server
  • Tracks 12 satellites for increased precision
  • Can support a secondary time receiver for MSF radio time signal
  • Support for NTP v2, NTP v3, NTP v4 and SNTP compatible clients
  • Supports both IPv4 and IPv6 networks
  • Configured across your network via a secure browser interface by HTTPS (RFC2616) and Secure Shell (SSH)
  • Dual RJ-45 ethernet interfaces 10/100/1000 Mbit, providing time for two independent networks
  • Supports NIC teaming for fail over and redundancy
  • Can handle more than 500,000 NTP requests per minute per port; ideal for large networks
  • MD5/SHA authentication for advanced security
  • Able to peer with other NTP time servers for enhanced synchronization security
  • Solid State Flash memory enables software upgrades and eliminates 'disk failure'
  • Front panel display for time, and satellite and radio time status
  • SNTP and NTP protocol support
  • Syslog error reporting
  • Fits in a standard 19 inch rack

For technical specifications, contact us now.

The GPS NTP time server includes the following

  • NTS-6002-GPS unit
  • GPS antenna
  • Power lead
  • NTP TimeSync software
  • Instruction manual on a USB stick


  • Extended antenna cable (100 to 1,000 metres)
  • Junction box (to extend antenna cable)
  • IDC cable tool (to insert cable in the junction box)
  • Additional antenna power supply (recommended from 150 metres onwards)


  • Gold and premium support package
  • Digital wall clock
  • Secondary MSF antenna
  • Lightning arrestor
  • Additional software license (5 to 300+ clients)

Galleon Systems

Galleon Systems has over 20 years of international experience in providing network time servers, time synchronization, and network clocks. Galleon Systems’ products are used by Buckingham Palace, 3M, Rolls-Royce, Vodafone, Tesco, Ford, Bank of England, Sharp, Kellogg’s, Shell, and many more.

Galleon System offers:

  • Six-year warranty
  • Lifetime support
  • CE certificate
  • FCC certificate
