Atomic radio time server and NTP client software to synchronise time over a network of computers

TS-300-MSF Atomic Radio Time Server [TS-300-MSF]

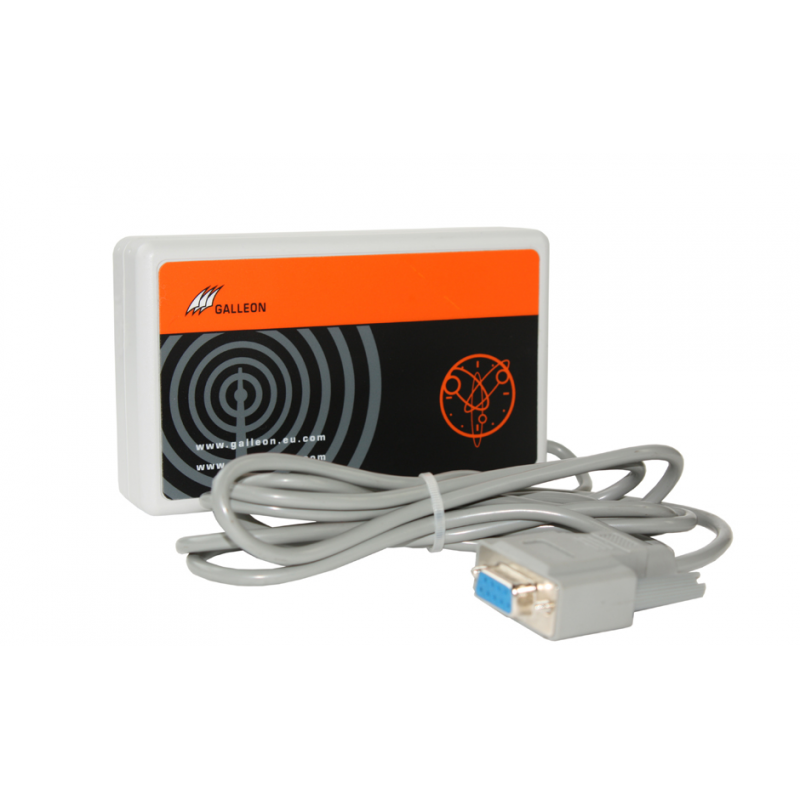

Atomic radio time server side

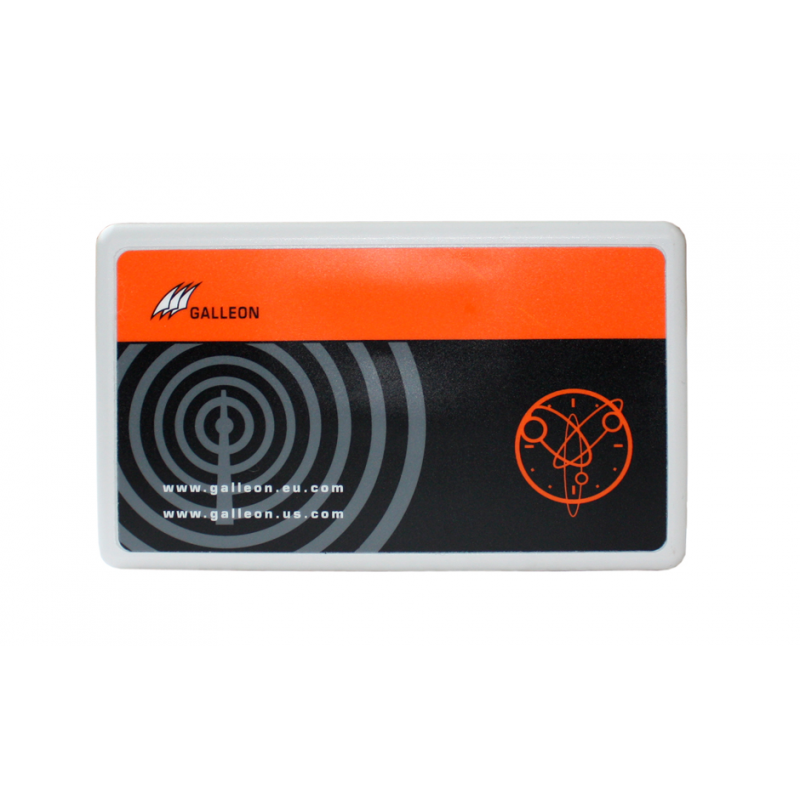

Atomic radio time server front

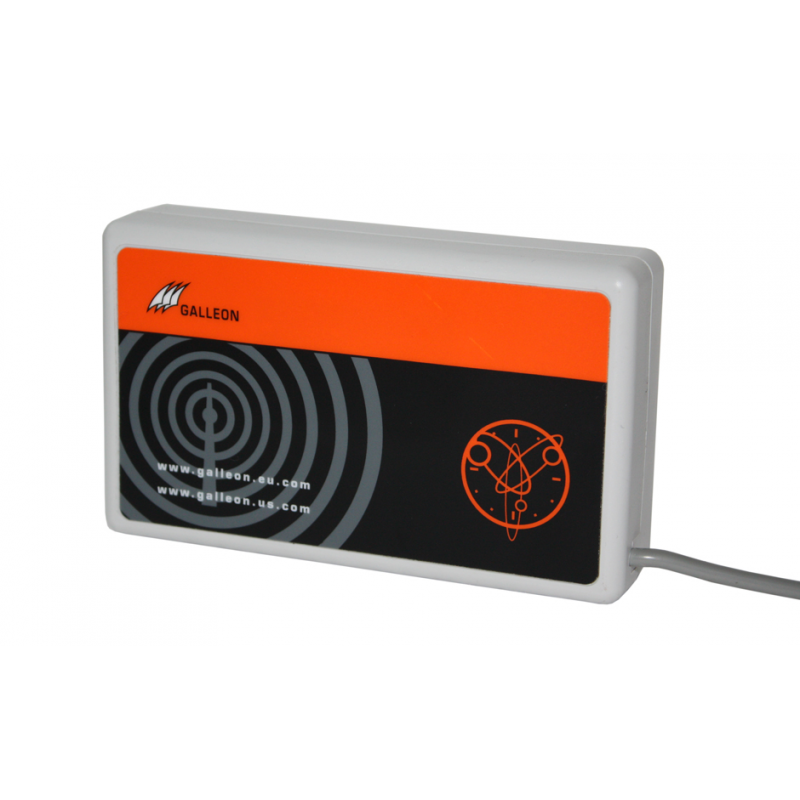

Atomic radio time server close

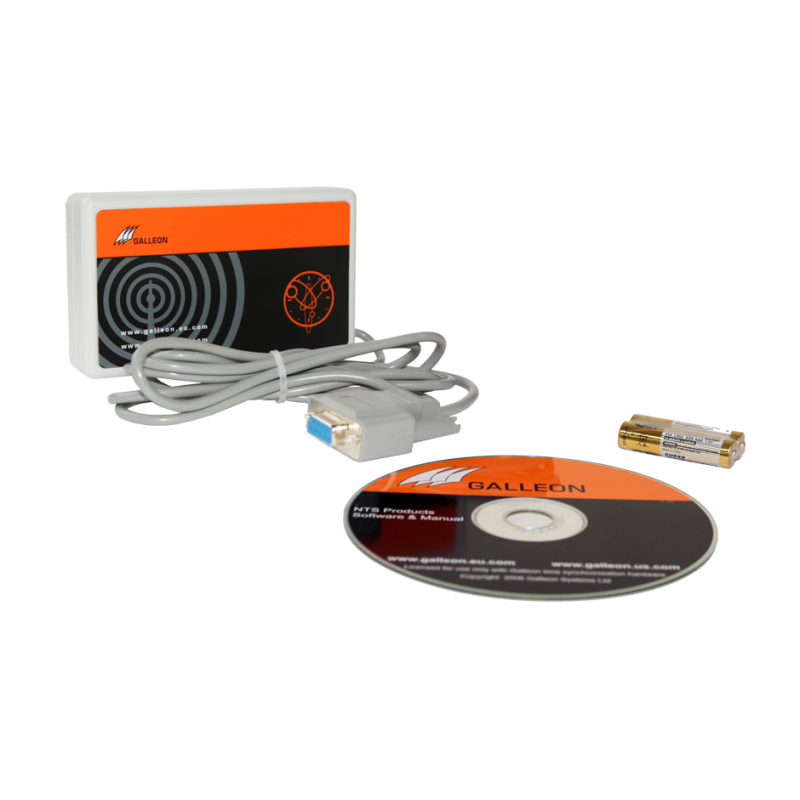

Atomic radio time server box

The TS-300 atomic radio time server is capable of supplying time to a network of PC’s.

The MSF clock is a standalone all-in-one antenna that receives a reliable signal.


TS-300 Atomic Radio Time Server

Providing accurate time behind a windows firewall, server or domain, the TS-300-MSF can be up and running in a few minutes. Supplied with a software driver for NTP Time-Synch and additional technical support by phone and email, Galleon provides a comprehensive and easy solution for secure network time.

Compatible with Windows XP, 2003, Windows XP and newer.

Key Benefits

  • Stand-alone unit with integrated MSF antenna
  • Accuracy ±20ms
  • Battery powered
  • Three year warranty

Technical specification for TS-300 Atomic Radio Time Server

Dimensions (mm) 73 (H) × 124 (W) × 29 (D)
Antenna Signal MSF (radio)
Protocols SNTP via Time-Sync Software
Connections RS232 Serial Interface
Antenna Mounting Outdoors with 180° view of the sky
Operating System Can be mounted internally (preferably near a window)
Humidity Max. 85%
Operating Temperatures 0-50°C (32-122°F)
Network Accuracy ± 20 ms, Typical
Signal (MSF) Accuracy <2>

What's in the box

  • TS-300-MSF antenna
  • Instruction Manual
  • Time Synch SNTP Software CD
  • Batteries

Additional Extras

The following products are also available for use with the TS-300-MSF:

  • Gold and Premium Support Packages
  • Digital Wall Clocks
  • Additional Software Licenses (available from 5 to 300+ clients)
