GPS Network Time Server - Network Time Synchronisation

TS-400 GPS Network Time Server [TS-400-GPS]

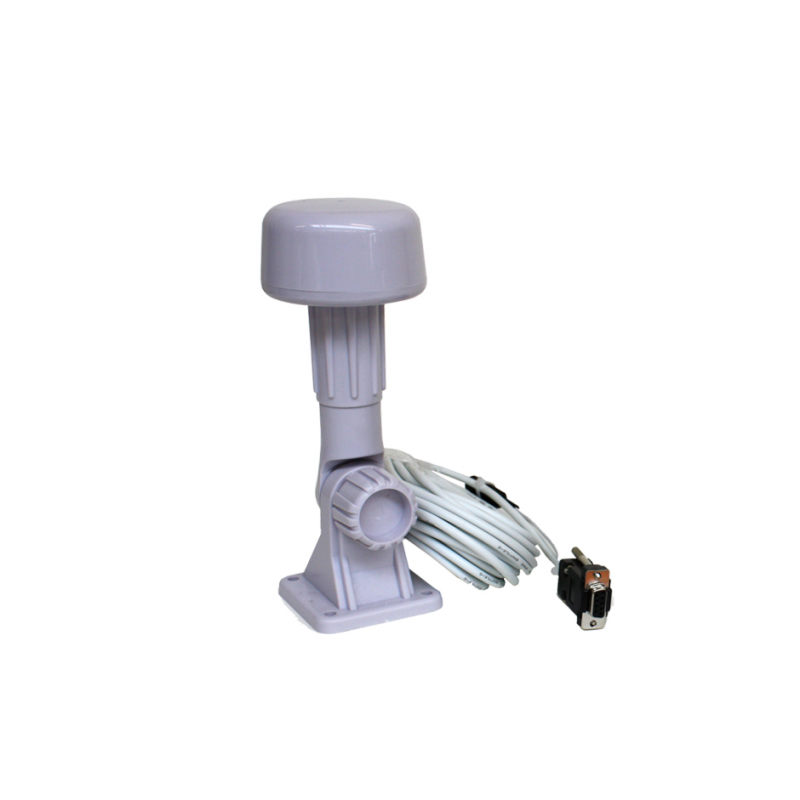

GPS network time server GPS mushroom antenna

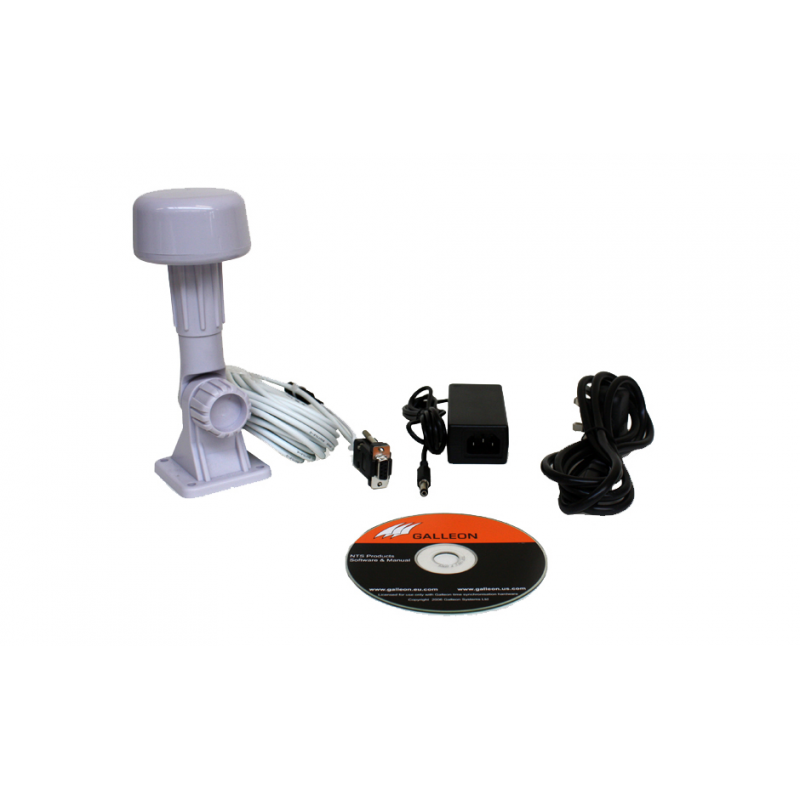

GPS network time server GPS what's included

Entry level GPS network time server

The TS-400 GPS network time server is supplied as an active GPS antenna and comes with software to convert any Windows workstation or server into a stratum 1 NTP GPS network time server.

The TS-400 GPS can track up to a maximum of 8 satellites enabling it to produce a very highly accurate time signal. Ideal for your time synchonisation needs.


Key Benefits for GPS Network Time Server

  • External GPS antenna
  • Tracks up to 8 satellites
  • Accuracy ±500ms
  • Mains powered
  • Three year warranty

Technical specification for TS-400-GPS Network Time Server

Antenna Signal Satellite - Active 8 Channel GPS
Power Supply 85-260V, 47-63Hz
Protocols SNTP via Time-Sync Software
Connections RS232 Serial Interface
Mounting Must be mounted externally (preferably with 360° view of sky)
Operating System Requires MS Windows (version dependent on existing system)
Operating Humidity Max. 85%
Operating Temperatures 0-50°C (32-122°F)
Network Accuracy ± 500 ms, Typical
Signal (GPS) Accuracy <1>

What's in the box

  • TS-400 GPS Network Time Server
  • Antenna with 10m (15m Max. of cable)
  • Instruction Manual
  • Power Lead
  • NTP Software CD

Additional Extras

The following products are also available for use with the TS-400-GPS:

  • Gold and Premium Support Packages
  • Digital Wall Clocks
  • Additional Software Licenses (available from 5 to 300+ clients)
