Radio Time Server

TS-900-MSF Radio Time Server [TS-900-MSF]

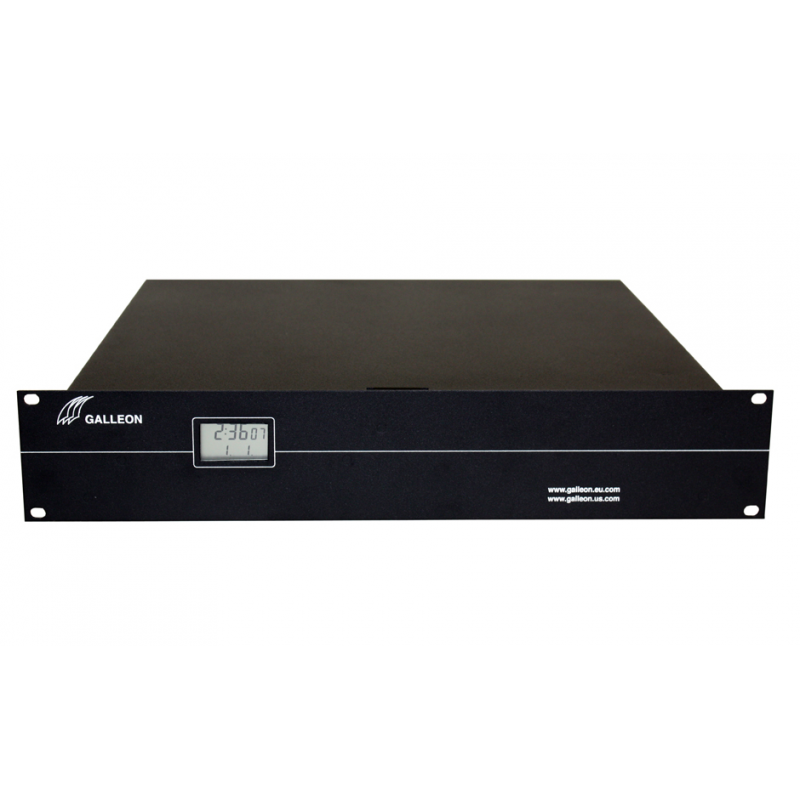

Front view of radio time server

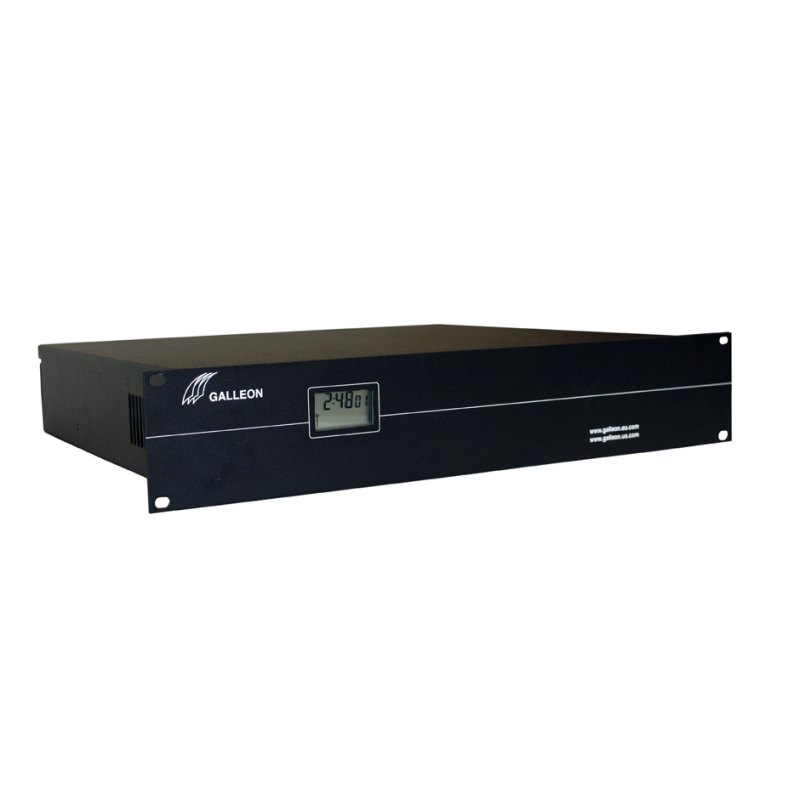

Side view of radio time server

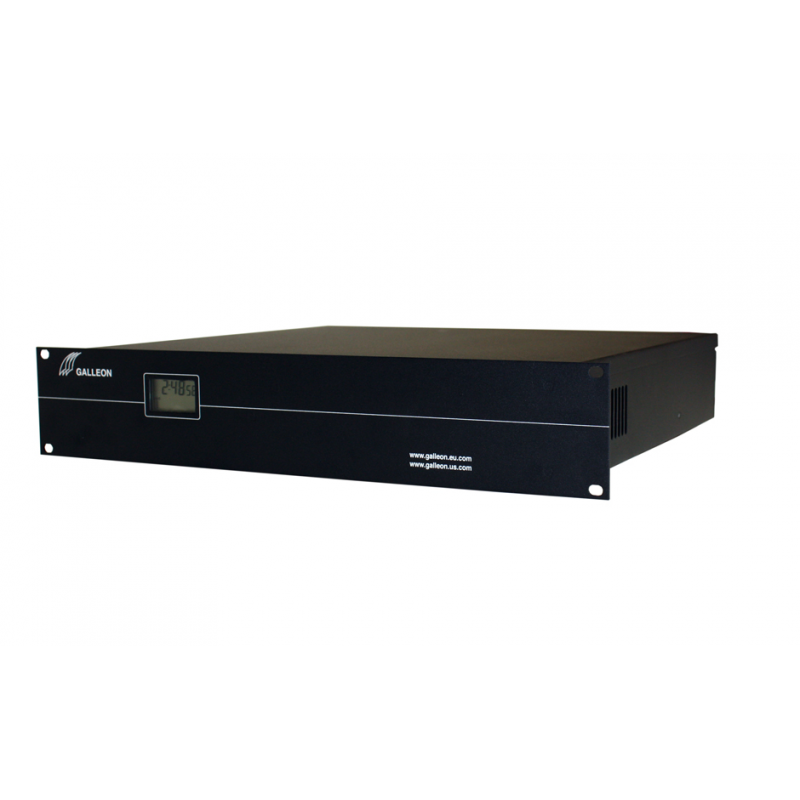

Left side view of radio time server

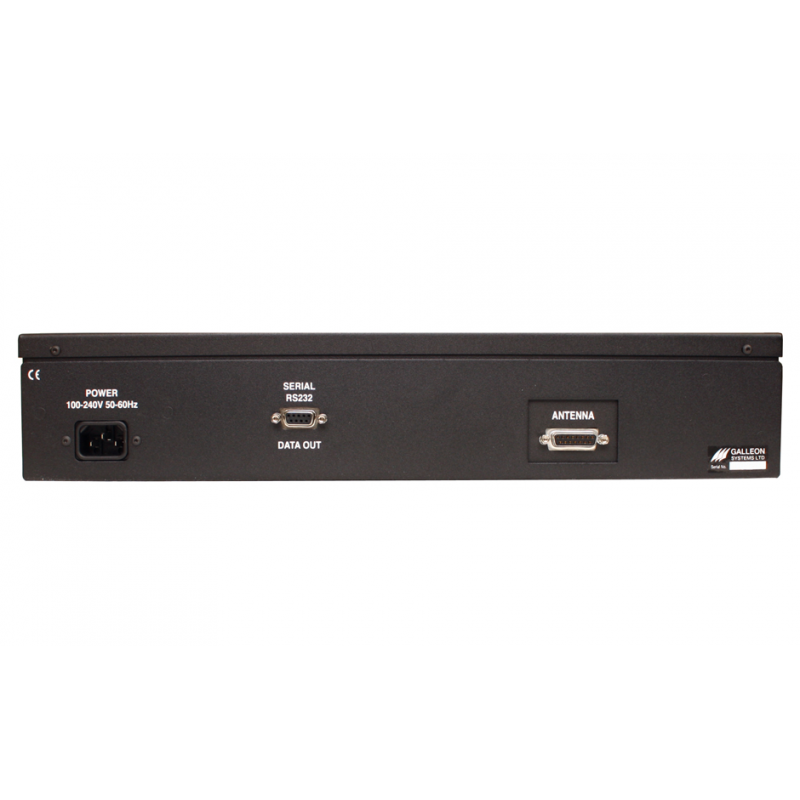

Back view of radio time server

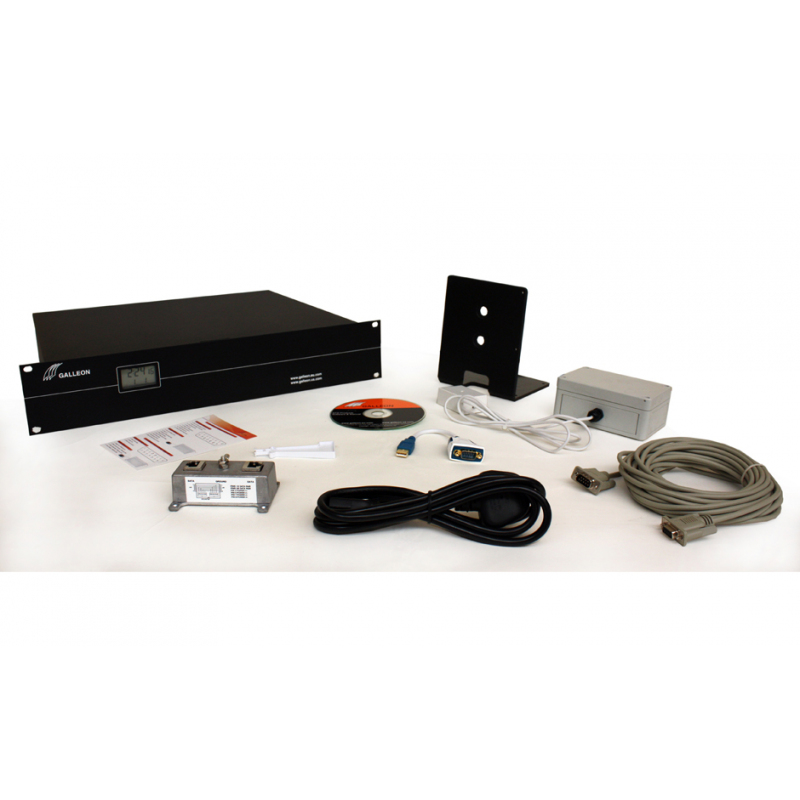

Radio time server what's included

The TS-900-MSF radio time server solution consists of an MSF clock, MSF antenna and NTP software (TimeSync).


Rack Mount Radio Time Server

The MSF clock is attached to windows PC and the supplied TimeSync software once installed configures the machine as a Stratum 1 NTP time server. A two line display on the TS-900 unit shows run-time information for the MSF subsystem and UTC time.

Sitting safely behind your company firewall the TS-900 provides an elegant solution allowing a Windows Server or a Domain Controller to supply accurate, secure UTC time to any other machine or digital clock on your network.

Key Benefits

  • Installs as a service on a Windows Server adding Stratum 1 NTP Time Server functionality
  • Supports NTP and SNTP compatible clients
  • Front Panel display to easily assess Time and Satellite Status
  • MSF time reference input + 5m cable
  • Extension box and wiring tool included - GPS antenna cable length can be extended up to
  • 1,000m (3,000ft) if required
  • Syslog error reporting
  • Email warning if MSF synchronisation is lost
  • 3 years warranty
  • Lifetime Technical Support by phone or email

Techical specification for TS-900 Radio Time Server

TS-900 Dimensions (mm)

(2U): 78 (H) x 425 (W)x 309 (D)
TS-900 Construction Powder Coated Steel
Antenna Extenal Radio receiver for the MSF Signal + mounting bracket
Power Supply 85-260V, 47-63Hz
Protocols SNTP via Time-Sync
Connections RS232 Serial Interface
Display 2 line LCD
Requests Per Minute Dependent on Hardware
Operating Temperatures 0-50°C (32-122°F)
Humidity Max. 85%
Mount Rack
Function Win -> Stratum 1
Network Accuracy Network:+/- 20 Milliseconds, Typical
MSF: <2>
Security System Error Logging

What's in the box

  • TS-900-MSF unit + Power Lead
  • MSF Antenna + power supply
  • Antenna wall mounting bracket
  • Instruction Manual
  • NTP Software CD
  • Junction Box (to extend antenna cable - if necessary)
  • IDC Cable Tool (to insert extension cable into the junction box- if necessary)
  • Additional Extras

Addional Extras

  • Gold and Premium Support Packages
  • RS232 to USB convertor
  • Digital Wall Clocks
  • Antenna Cable (100 to 1,000 metre rolls available)
  • Additional Power Supply (Recommended from 150 metres onwards)
  • Additional Software Licenses (available from 5 to 300+ clients)
