User friendly network time server

Network time server [NTS-6001-GPS]

Galleon Systems’ network time server receives and synchronises accurate time for two independent networks and has a quick and user-friendly set-up process. The server uses a Linux based operating system and connects to your network directly via a CAT5 ethernet cable.

Contact us now for more information.


Benefits of the network time server

  • Consistent and reliable timing
  • Quick and user-friendly set-up process
  • At 27 Watts, the unit stays cool, maintaining efficiency
  • Upgrades through flash memory and web browser
  • Space-saving unit, 1U high and rack mounted

Product Specifications for Network time server

Protocols NTP & SNTP NTP v2 (RFC 1119) NTP v3 (RFC1305) NTP v4 (RFC 2131)  SNTP v3 (RFC 1769) SNTP v4 (RFC 2030)
Configuration

Across a Network via Secure Browser

Configuring https (RFC2616), Secure Shell (SSH)

Technical Standard

NEMA 0183 V.2 Compliant

SNMP Simple Network Management Protocol (Can Be Switched OFF)
Network Interface Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections
MTBF Estimated 45,000 hrs
Display LCD with Backlight
Operating System Linux Based

Operating Temperatures

0-50°C (32-122°F)
Heat Dissipation 150 BTU Per hour
Humidity

Max. 85% Non-Condensing

Mount Rack
Function Stratum 1 Time Server, Secure Shell (SSH) and HTTPS
Network Accuracy

Network: 1-10 Milliseconds, Typical GPS: <1 Microseconds, Relative to UTC

Security MD5 Authentication
NTP Time Requests

Up To 250,000 per minute

Power Supply

Universal 85-260V, 47-63Hz

Power Consumption 27 Watts

Dimensions (mm) Packed and Unpacked

Unpacked 1U: (H) 45 (W) 425 (D) 309, Packed Up: (H) 160 (W) 620 (D) 630

Properties

Powder Coated Steel

Weight with Antenna Packed and Unpacked

7.6kg, 4.8kg

Source

Satellite
External Active 12 Channel GPS

Galleon Systems

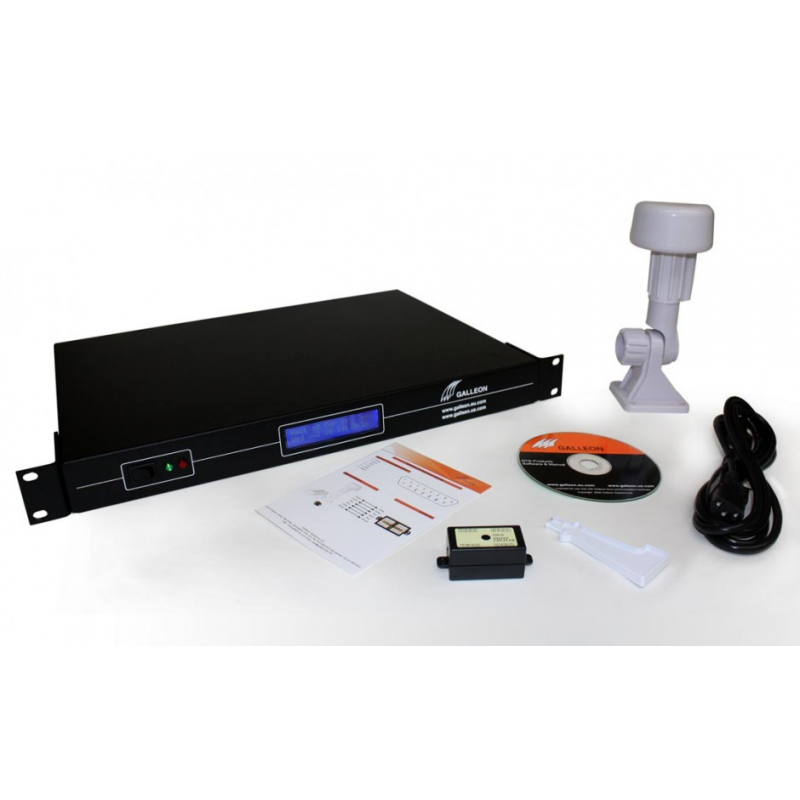

The Network time server includes:

  • NTS-6001-GPS unit
  • GPS antenna
  • Power lead
  • NTP TimeSync software
  • Instruction manual on a USB stick

Optional

  • Extended antenna cable (100 to 1,000 metres)
  • Junction box (to extend antenna cable)
  • IDC cable tool (to insert cable in the junction box)
  • Additional antenna power supply (recommended from 150 metres onwards)

Extras

  • Gold and premium support package
  • Digital wall clock
  • Secondary MSF antenna
  • Lightning arrestor
  • Additional software license (5 to 300+ clients)

Assurances:

  • Six-year warranty
  • GPS antenna sealed to IP65
  • FCC certified
  • CE certified
  • Lifetime support
