Inova 6-Digit NTP Clock for Networks | Galleon Systems

Inova Solutions 6-Digit NTP Clock [ARC/HMS/ONT6BK]

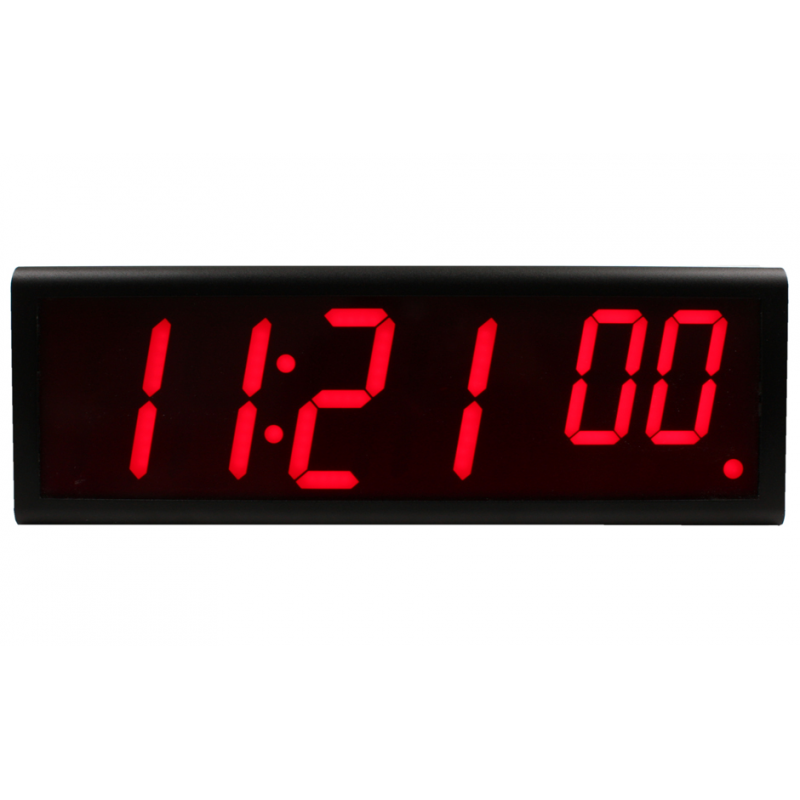

Inova 6-Digit NTP Clock front view

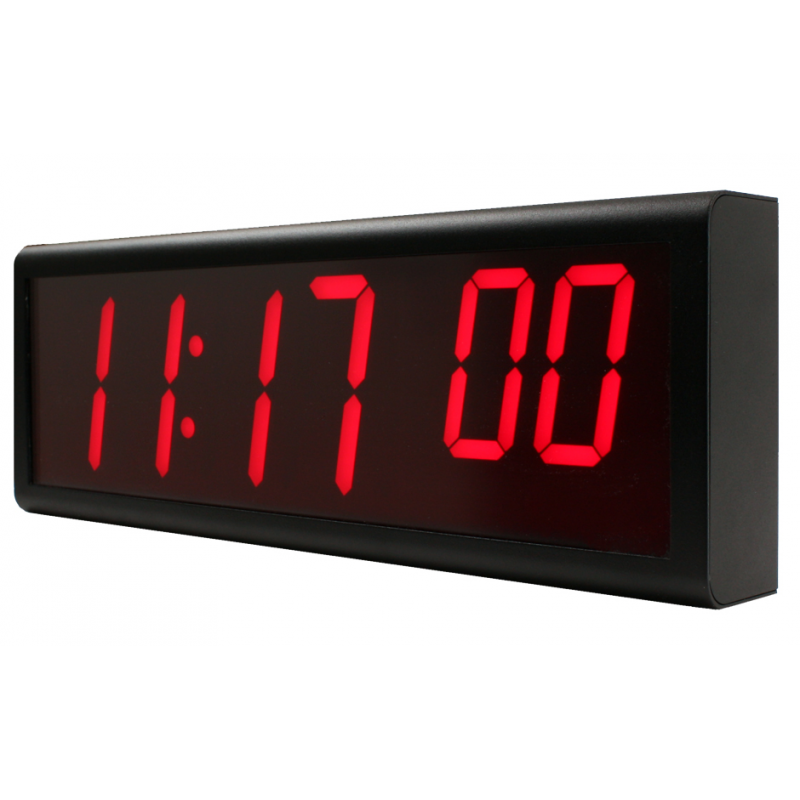

Inova 6-Digit NTP Clock right view

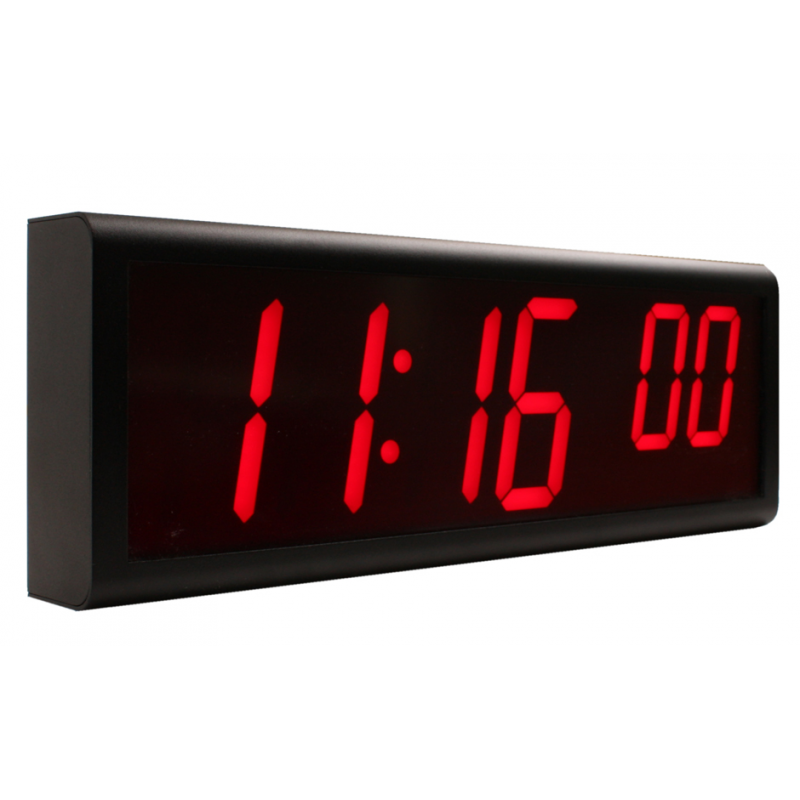

Inova 6-Digit NTP Clock left view

The Inova 6-Digit NTP Clock (now known as the Novanex Solutions NTP clock) is available in either (HH:MM:ss) or (HH:MM) formats. It is fitted with anti-glare plexiglass and available in sizes between 1.8" and 12" inches. Powered from a mains outlet and developed from an Aluminum body the unit can synchronise with a Galleon timeserver through an Ethernet port for accurate and precise readings.

Key Benefits

  • Synchronized and highly accurate
  • Time is automatically updated to ensure consistency and reliability
  • Uses PoE (Power over Ethernet)
  • Easy installation and operation
  • Hundreds of clocks can be configured from a single PC

Product specification for the Inova 6-Digit NTP Clock

Display: Super Bright 7 Segment Red LED's
Display Format: 68 User Defined Display Formats ⊕ Selectable 12 or 24 Hour Format
Clock Accuracy: Up to 1 second per year with included high accuracy crystal oscillator at 0°C to 40°C. For increased accuracy, a time receiver option is required. Available time receivers include GPS, CDMA, IRIG-B, SMPTE, PC and Ethernet.
Operating Modes: Real time hours, minutes and second
Digit Height: 45mm (1.8") to 305mm (12") Characters
Visibility: Up to 50 meters
Power Requirement: 110 volt AC Adapter with low voltage cord
Operating Temperature: 0°C to 40°C
Humidity: 0% to 95% Non-Condensing
Construction: Aluminum or plastic Frame with anti-glare plexiglass front


What's in the box

  • Inova 6-Digit NTP Clock (Inova are now known as Novanex Solutions)
  • Instructions
  • Power Injector (used to power the clock if PoE is not available - if necessary)

Additional Extras

The following products are also available for use with the Inova 6-Digit NTP Clock

  • Time servers
  • Power Injector
