Portable sf6 gas leak detector by Ion Science

SF6 LeakCheck [portable sf6 gas leak detector]

Award winning portable sf6 gas leak detector

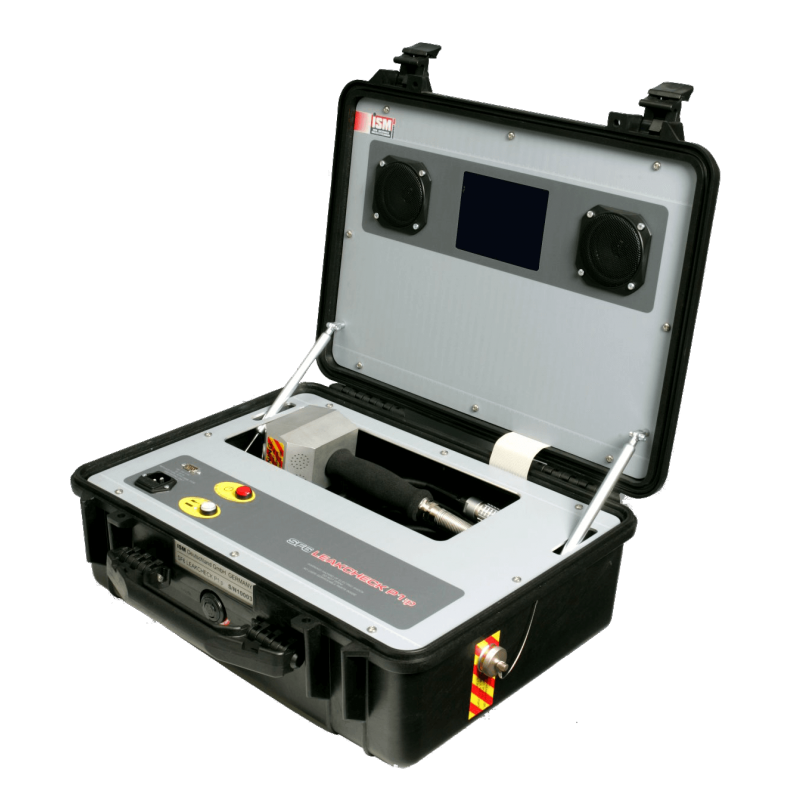

The sf6 LeakCheck is a portable sf6 gas leak detector manufactured by Ion Science.

The sf6 detector incorporates the award winning Negative Ion Capture (NIC) technology with a non-radioactive source. The NIC technology enables the detector to provide accurate measurements and location for sf6 leaks in high voltage electrical switchgears.

The non-radioactive source eliminates problems of registration, storage and transportation.

The detector does not get contaminated when exposed to 100% sf6 gas.

The portable sf6 gas leak detector has the following features

  • High sensitivity – 1 x 10-8 ml/sec
  • Award winning Negative Ion Capture (NIC) technology
  • Rapid leak detection – 1 second response time and clear down
  • Not affected if exposed to large leaks and 100% sf6 gas
  • No regeneration period between readings
  • Choice of displaying unit– cc/sec, gm/yr and ppm
  • Non-radioactive source for easy storage and transportation
  • Easy to use – No training required
  • Lightweight – ergonomically designed handgun
  • Easy navigation - touch screen navigation
  • Simple data storage and printing for analysis
  • Reduced cost of ownership – No argon or other pressurised gases is required
  • Two year warranty when product is registered online

Specifications for the portable sf6 gas leak detector

Features Value/Information
Minimum principle Negative Ion Capture (NIC): a non-radioactive, non-restricting carriage. No licensing required.
Sensitivity Standard SF6, GasCheck P1 and LeakCheck P1:p. 1 x 10-7 ml/sec, 1 ppm, 0.01 gm/yr SF6. Highsense option. 1 x 10-8 ml/sec, 0.1 ppm, 0.001 gm/yr SF6.
Response T90 =<1>
Operation Lead acid battery, internal and fully protected. Recharge between 85-265 AC V, 50/60Hz
Alarm Audio and visual with an optional handset alarm
Measurement units Measures in ml/sec, gm/yr and ppm. Range: each unit 1:500. Accuracy: ± 5% of displayed leak rate or ± 2 digits. Repeatability: ± 1 digit.
Calibration CalCheck calibration
Data logging Over 500 data points with date and time stamp. Download data via RS232.
Temperature Storage: -10 to 60 oC (14 to 140 oF). Operating: 0 to 50 oC (32 to 122 oF).
Dimensions SF6 LeakCheck P1:p. Consol: 500 x 400 x 190 mm (19.7 x 15.7 x 7.5”). Shipped: 520 x 430 x 210 mm (20.5 x 16.9 x 8.3”)
Weight SF6 LeakCheck P1:p. Shipped 15 kg (33 lb).

For more information about the portable sf6 gas leak detector, contact us now.
