The Personal benzene monitor manufacturer | Ion Science

Cub TAC [personal benzene monitor manufacturer]

personal benzene monitor manufacturer

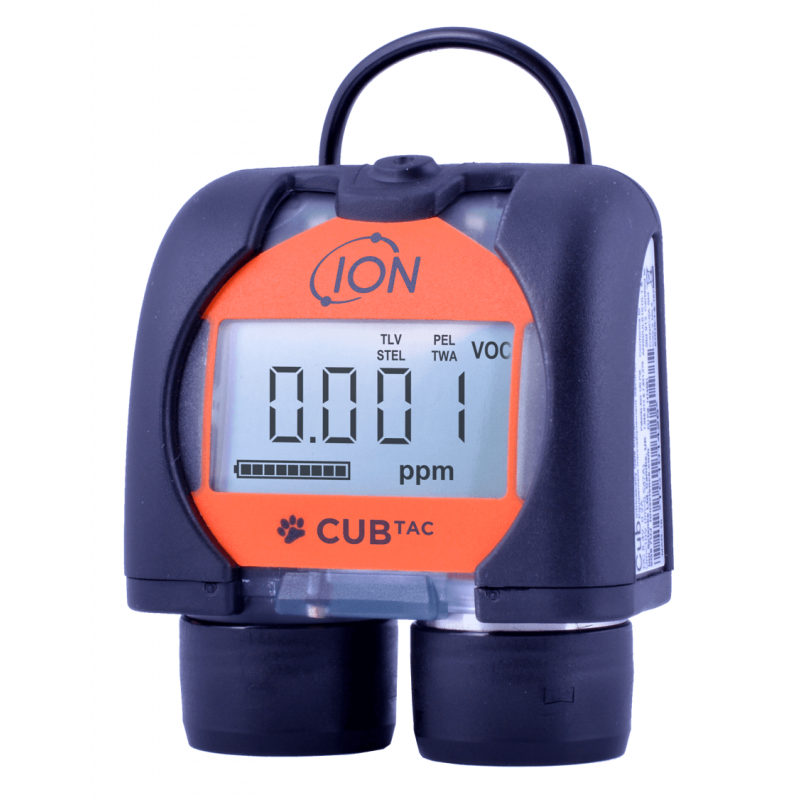

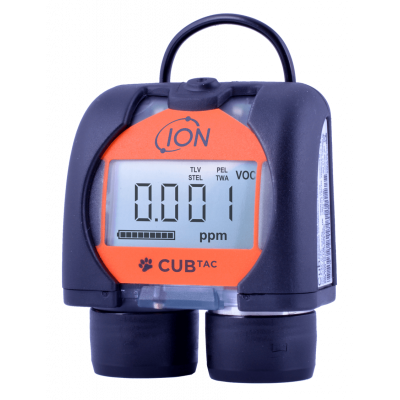

Ion Science is the personal benzene monitor manufacturer. The company manufactures the CubTAC personal monitor.

CubTAC provides fast and accurate detection of benzene and total aromatic compounds (TACs).

The personal benzene monitor manufacturer produces the smallest and the lightest detector on the market.

The CubTAC is easy to use and easy to upgrade.


The personal benzene detector incorporates the patented Fence Electrode Technology and the best ppb sensitivity on the market. These features ensure accurate gas measurements whilst extending the life of the device in harsh environments.

The benzene detector enables users to pre-set gas alarm levels. This feature uses sound, vibration and flashing LED as the alarm system.

The personal benzene monitor has the following features:

  • Ion Science’s PID technology is independently verified as the best performing PID in the market
  • Unrivalled sensitivity – detects ppb levels accurately
  • Widest measurement range: 0 – 5,000 ppm
  • Humidity resistant
  • The design prevents contamination
  • Fastest response to hazardous gases and vapours – <13>
  • Clear audio, visual and vibrating alarm system
  • Large LCD display
  • 16 hour battery life
  • Fulfils ATEX and IECEx standards
  • Smallest and lightest personal PID monitor
  • Can be operated with one button
  • Intuitive software and simple calibration routine
  • Easy to service
  • Easy to upgrade
  • Affordable parts
  • Two years warranty when product is registered online

The personal benzene monitor manufacturer incorporates the following specifications:

Features Value/Information
Sensitivity 0.01 ppm (isobutylene equivalent). 0.002 mg/m3 (isobutylene equivalent)
Accuracy ±5% display reading + one digit
Response time <13>
Approvals

Europe:ATEX:CE,Ex II 1G,Ex ia IIC T4;-20oC ≤Ta≤ 55oC.

 IECEx: Ex ia IIC T4-20oC ≤Ta≤ 55oC.

China: Ex ia IIC T4 -20oC ≤ Ta ≤ 55oC.

US and Canadian approvals: Class I, II and III, Division I, Hazardous.

Battery 16 hours of battery life. 4 hours of charge.
PID lamp options 10.0 eV
Data logging 30,000 readings
 Communication USB 2.0
Alarm LEDs, audio and vibrate. Sounder 86 dB @ 300mm. Pre-programmed TWA & STEL. Work exposure alarm levels on all models.
Temperature Operating: -20 to 55 oC, -4 to 131 oF. Humidity resistant technology: Fence electrode technology
Weight and dimensions 111g (3.91 oz.) 61 x 66 x 59mm (2.4 x 2.6 x 2.3”).
Resolution 0.01 ppm
Range 0 – 5,000 ppm
Calibration 2 point calibration via the docking station
Upgradeable Upgrade ppm to ppb
IP rating Designed to IP65 standard (suitable for heavy rain)
LCD display Back lit and multi coloured
Flow rate N/A (no pump)
Docking station options

Charge. Charge and USB communication. Charge, USB communication and calibration.

For more information about the personal benzene monitor manufacturer and its products, contact us now.
