The portable mercury vapour analyzer provides fast detection

MVI [portable mercury vapour analyzer]

portable mercury vapour analyzer

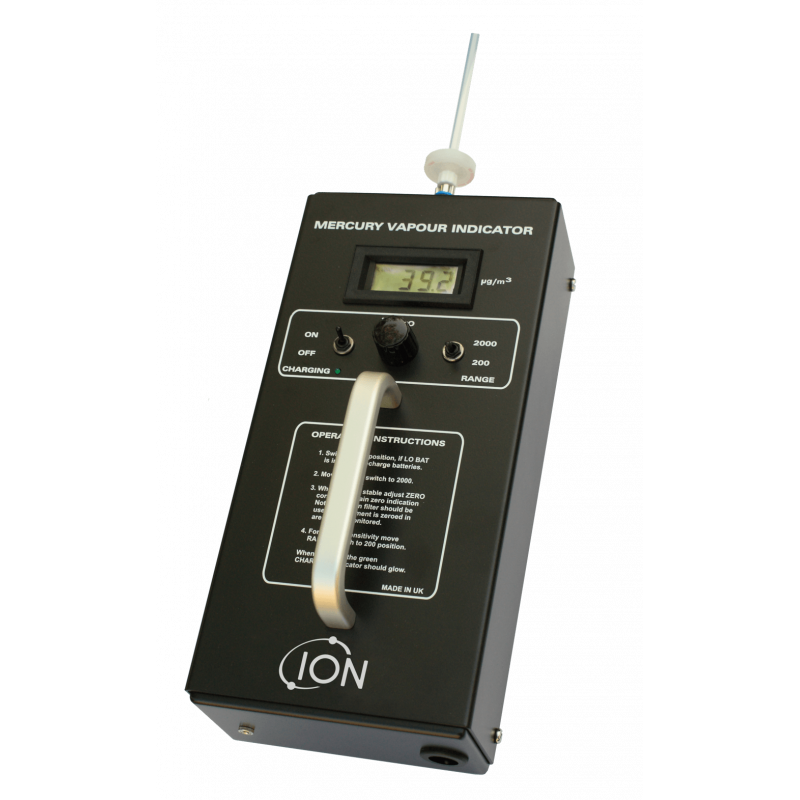

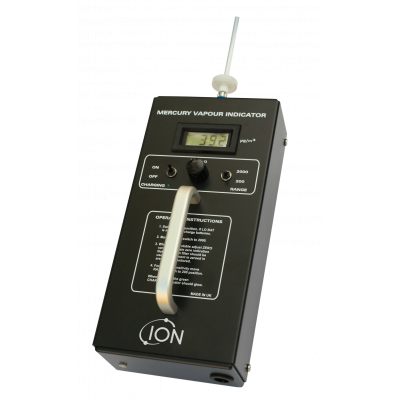

The mercury vapour indicator (MVI) is a portable mercury vapour analyzer.  The MVI gives live readings and detects mercury vapour in 3 seconds.

The instrument utilizes dual beam UV absorption technology, which eliminates the need for regenerations between readings or saturations.

The mercury vapour analyzer provides rapid and accurate detection. The device is economically designed and can be operated by one hand.

MVI is a portable mercury vapour detector that utilises a high-performance pump for fast indication and recovery.


Features of the portable mercury vapour analyzer

  • Large and clear digital display
  • Portable and easy to use
  • Easy to use – minimal training required
  • Robust - can withstand harsh environments
  • The audible alarm gives clear indication of mercury vapour levels
  • Fast 3 second response
  • High accuracy
  • Range: 0.1 – 200 & 1.0 – 1999 microgram / cubic meter
  • ·The high-performance pump enables fast indication and recovery of device
  • No saturation, no regeneration – eliminates downtime
  • Continuous 5.5 hours of operation
  • Inexpensive consumables and parts
  • 2 years warranty when product is registered online

Specifications for the portable mercury vapour analyzer

Feature Value/Information
Detector Dual beam ultraviolet absorption module
Accuracy ± 5 micrograms or ± 10% reading
Operation MVI gives real time mercury vapour concentrations
Alarm Audible alarm factory pre-set to 20 microgram/cubic meters
Instrument range 0.1 to 200 and 1.0 to 1999 microgram cubic meter
Temperature 10oC to 50oC
Weight and dimensions 6 lbs 10 oz (3Kgs). 145 x 295 x 80 mm
Repeatability ±5 % FSD @ 1 μg/m3
Batteries NiMH – 5 1⁄2 hours when fully charged
Power NiMH
Response 3 seconds

For more information on the portable mercury vapour analyzer, contact us now.
