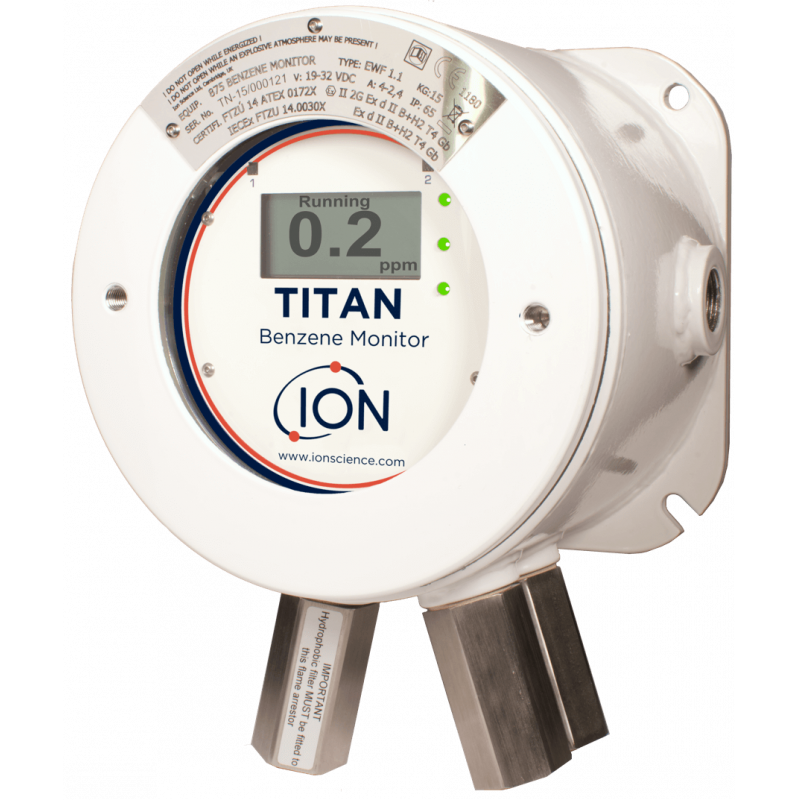

Titan [benzene fixed gas detector]
Titan is the first selective benzene fixed gas detector on the market. Manufactured by Ion Science, the fixed benzene detector incorporates their patented PID technology. This technology makes the detector resistant to humidity and contamination, ensuring optimal performance even in harsh environments.
The Titan provides continuous, real-time benzene specific measurements. Mounted on the wall, the detector scans the environment and displays the current benzene level measurements. This function makes it possible to monitor for trends over time.
The detector is easy to install and service.
|Sensor type||PID, 10.6 eV lamp coupled with selective filtering|
|Selectivity||Benzene specific measurements in standard petrochemical matrix|
|Range||0 – 20 ppm|
|Measuring frequency||One minute|
|Lower limit of detection||0.1 ppm|
|Accuracy||±0.05 ppm or ±10%, whichever is greater|
|Temperature stability||Internally heated|
|Sample flow||200 ml/min|
|Display||Graphical BW LCD 64 x 128 pixels with back light.
Bright LEDs for normal operation, fault and alarm.
Two magnetic switches for menu operation.
|Hazardous area safety approvals||ATEX/IECEx: II 2G Ex d II B+H2 T4 Gb (-20 oC to +55 oC)|
|Ingress protection rating||Designed to IP65 standard (cable gland dependant)|
|Humidity||0 – 100% RH|
|Minimum service period||Selective filter six months.
PID lamp one year
|Cable entry||Two 3/4 NPT gland threads|
|Power||Vin (nom) 24 V DC @ 3.2 A (recommended). Vin (max) 32 V DC @ 2.4 A.
Vin (min) 19 V DC @ 4.0 A.
|Communication||Isolated 4-20 mA output.
RS 485 Modbus.
|Data storage||On board MMC, minimum six months|
|Relay||Two isolated outputs, voltage free, 24 V DC @ 1.25 A max|
|Weight and dimensions||15 kg (33 lbs)
219 x 219 x 172 mm (8.6 x 8.6 x 6.8” approx.)
|Gas sample line||10 m max length, PTFE, 6 mm OD, 4 mm ID|
