Handheld VOC gas detector

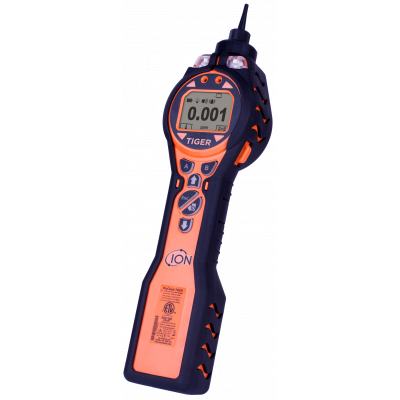

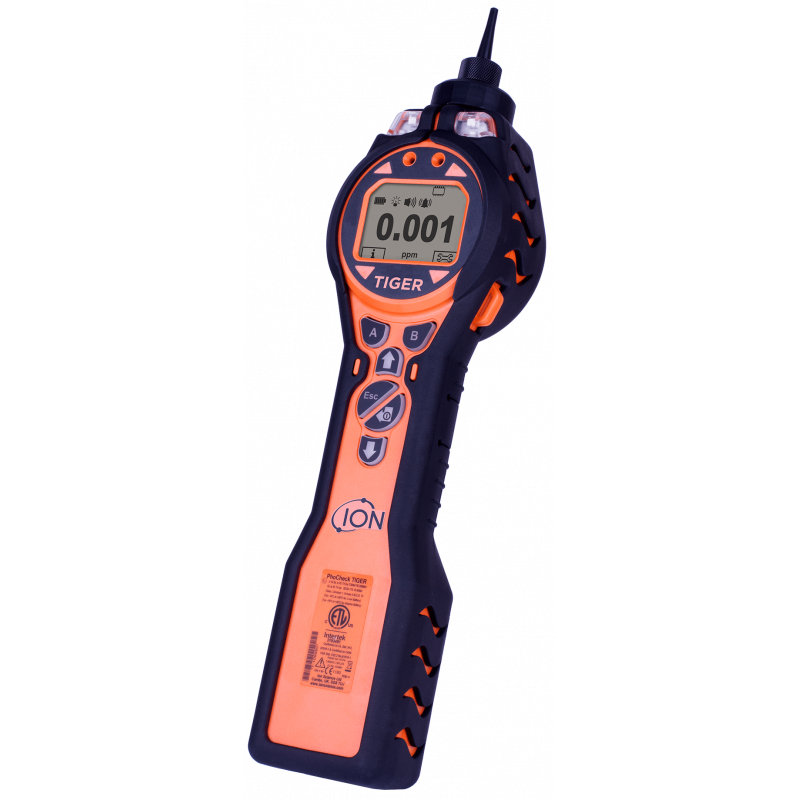

The tiger handheld VOC gas detector is manufactured by Ion Science.

The gas detector provides rapid and accurate detection of volatile organic compounds (VOC). The detector incorporates patented photo ionization detector (PID) technology from Ion Science. The VOC detector is resistant to humidity and has an anti-contamination design, which extends the run time of the device in the field.

The rugged design and detachable protective cover enables the VOC detector to withstand harsh environments.

The handheld VOC gas detector provides the widest measurement range and the fastest response time. The detector is easy to use and easy to upgrade. These features make the detector a reliable, long term investment.

The Tiger VOC detector is used and trusted by many major gas detection companies around the world.

Features of the handheld VOC gas detector

  • Humidity resistant PID sensor
  • Contamination prevention design
  • 0 ppm – 20,000 ppm VOC detection
  • Minimum sensitivity of 0.001 ppm (1 ppb)
  • Fast 2-second response time and quick clear down
  • Detects over 480 VOCs and toxic compounds
  • No complicated set-up
  • 24 hours battery life
  • Simple to use – minimal training required
  • Direct USB connection for fast data download
  • Easy to upgrade via the Ion Science website
  • Intuitive software
  • Easy access to the sensor, electrode stack and lamps
  • Can be operated by one hand
  • Backlit keypad
  • Low operational cost
    Inexpensive consumables and parts
  • Five-year warranty when the product is registered online
  • Accurate results in all environmental conditions
  • Fulfils ATEX, IECEx, UL and CSA standards

Specifications for the handheld VOC gas detector

Li-ion: 24 hours of continual use.Alkaline: (Duracell Procell MN 1500) 8.5 hours of continual use​

Features Value/Information
Minimum resolution 1 ppb or 0.001 mg/m3
Maximum reading 20,000 ppm or 20,000 mg/m3
Response time T90 < 2>
Accuracy and Linearity ± 5% display reading ± one digit
Intrinsically safe approvals II1GExiaIICT4Ga. Tamb = – 15 0C =Ta =+45 0C (with alkaline battery pack). ITS09ATEX26890X IECEx ITS 10.0036X. 3193491 conforms to UL Std. 913, 61010-1. Certified to CAN/CSA Std. C22.2 No. 61010-1
Battery life

Li-ion: 24 hours of continual use. Alkaline: (Duracell Procell MN 1500) 8.5 hours of continual use

Lamps 10.6 eV Krypton PID lamp (standard) and 11.7eV lamps available
Data logging Including date / time: 120,000 points
Communication Direct USB 1.1 connection
Calibration Standard calibration of 100 ppm isobutylene. Optional custom calibration.
Alarm Flashing LED and 95 dBA at 300mm (12”) and audible vibrating alarm. Pre-programmed TWA and STEL. Pre-programmed to test more than 480 gases.
Flow Rate 220 ml/min in ambient conditions (with blocked flow alarm)
Temperature Operating: -20 to 60 0C, -4 to 140 0F (not Intrinsically safe). Humidity: 0-99% RH (not condensing)
Protection Designed to IP65 standards (suitable for heavy rain). C E 1180. EMC tested to EN61326-1:2006, EN50270:2006 and CFR 47:2008. Class A standard.
Weight and dimensions Dimensions of instrument without probe: 340 (W) x 90(H) x 60 mm (D) (13.4 x 3.6 x 2.4”). Dimensions of standard case: 420 x 320 x 97 mm (16.5 x 12.5 x 3.8”). Instrument weight 0.72 kg (1.56lb). Packed weight: 5 .5kg (12lb)
Standard case 420x320x97mm (16.5×12.5×3.8”)

The handheld VOC gas detector is available as a base unit with an optional kit. For more information contact us now.
