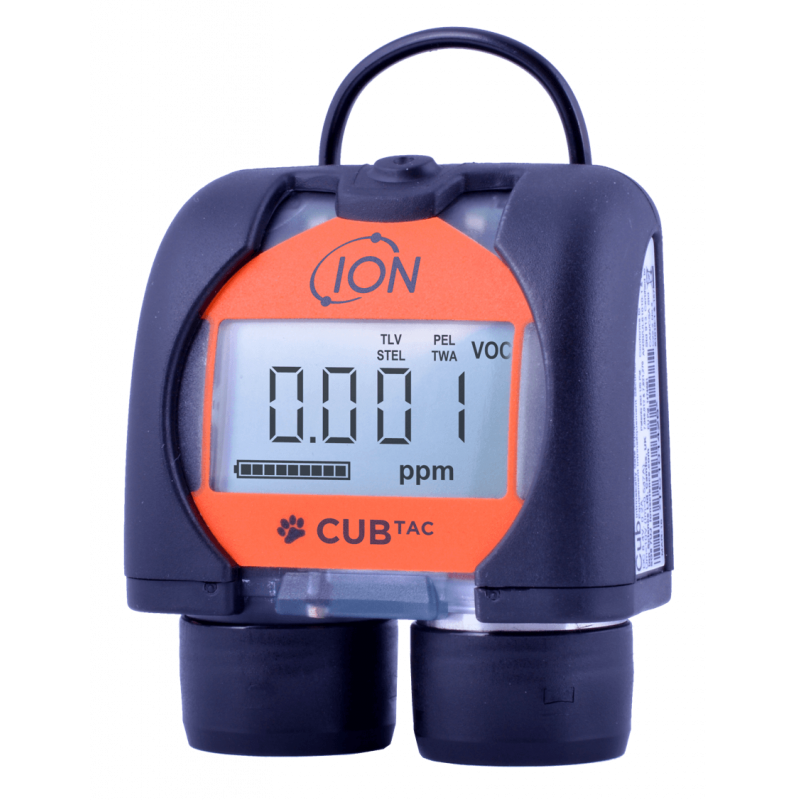

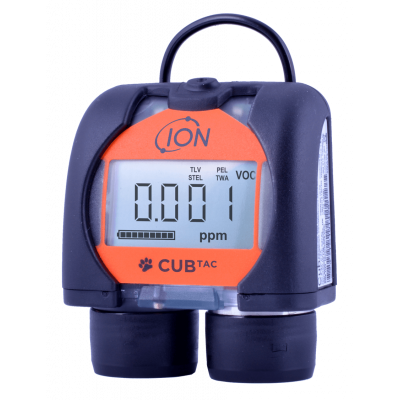

Cub TAC [personal benzene gas monitor]
CubTAC is a personal benzene gas monitor from Ion Science.
The benzene detector provides fast and accurate detection of benzene and of total aromatic compounds (TACs).
The detector incorporates the best ppb sensitivity in the market and the patented Fence Electrode Technology. These features ensure accurate measurements and extend run time of the device in harsh environments.
The instrument enables the user to pre-set gas alarm levels, which alerts the user through the sound, vibration and a flashing LED alarm system.
The personal benzene gas monitor is easy to use and upgrade.
The CubTAC is the smallest and the lightest detector in the market.
|Sensitivity||0.01 ppm (isobutylene equivalent). 0.002 mg/m3 (isobutylene equivalent)|
|Accuracy||±5% display reading + one digit|
|Approvals||Europe:ATEX:CE,Ex II 1G,Ex ia IIC T4;-20oC ≤Ta≤ 55oC. IECEx: Ex ia IIC T4-20oC ≤Ta≤ 55oC. China: Ex ia IIC T4 -20oC ≤ Ta ≤ 55oC. US and Canadian approvals: Class I, II and III, Division I, Hazardous|
|Battery||16 hours of battery life. 4 hours of charge.|
|PID lamp options||10.0 eV|
|Data logging||30,000 readings|
|Alarm||LEDs, audio and vibrate. Sounder 86 dB @ 300mm. Pre-programmed TWA & STEL. Work exposure alarm levels on all models.|
|Temperature||Operating: -20 to 55 oC, -4 to 131 oF. Humidity resistant technology: Fence electrode technology|
|Weight and dimensions||111g (3.91 oz.) 61 x 66 x 59mm (2.4 x 2.6 x 2.3”).|
|Range||0 – 5,000 ppm|
|Calibration||2 point calibration via the docking station|
|Upgradeable||Upgrade ppm to ppb|
|IP rating||Designed to IP65 standard (suitable for heavy rain)|
|LCD display||Back lit and multi coloured|
|Flow rate||N/A (no pump)|
|Docking station options||Charge only. Charge and USB communication. Charge, USB communication and calibration.|
For more information about the personal benzene gas monitor, contact us now.
