The world’s smallest and lightest personal gas detector

CUB [personal gas detector]

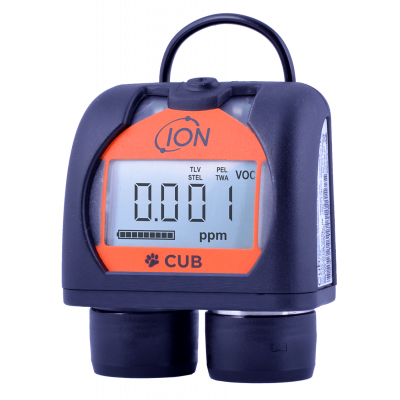

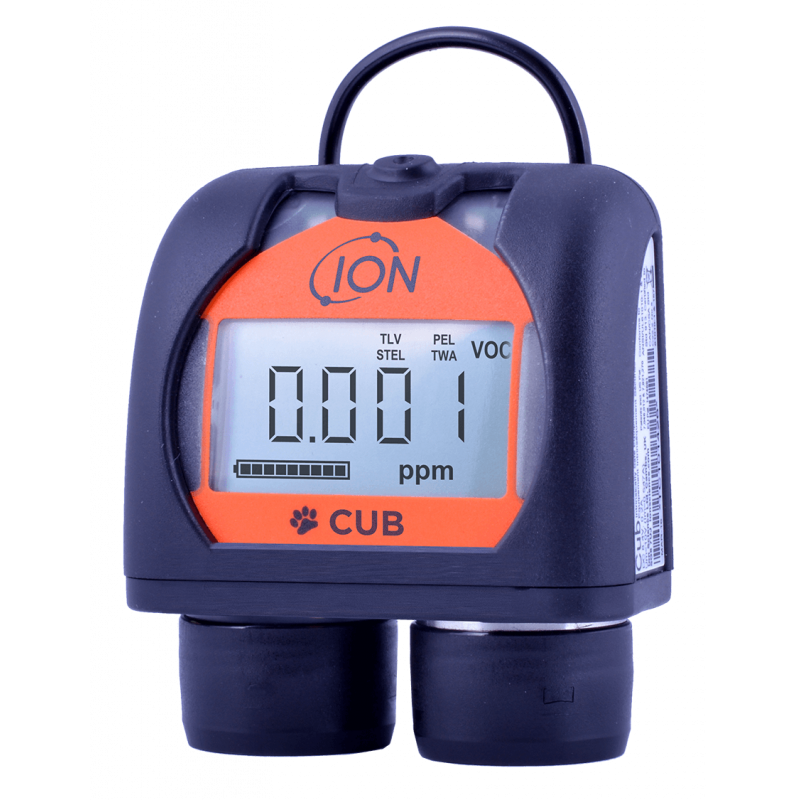

CUB, the personal gas detector

CUB, the personal gas detector, is manufactured by Ion Science. The detector offers unrivalled sensitivity, the widest detection range, and can measure 480 selectable compounds. The personal VOC detector is suitable to wear in harsh environments, and has ATEX, IECEx, US, and Canadian certifications.

Contact us now to ensure your workers’ safety.


The personal gas detector incorporates the best PID sensor in the market (independently verified), to ensure safety in the work environment. Comfortable and inconspicuous to wear, the detector has the widest range of detection: 0 to 5000 ppm.

The CUB is available as a standard instrument with 10.6 eV lamp. The detector detects a wide range of volatile organic compounds (VOC) to part-per-million (ppm) levels. The device can also be upgraded to part-per-billion (ppb) levels online, eliminating the hassle of sending the device back to the factory.

The CUB can be used in hazardous environments, and has a two year warranty if it’s registered online.

The personal gas detector incorporates the following benefits:

Feature Benefit
Photoionization detection (PID) technology Provides fast and accurate detection of volatile organic compounds
Fence Electrode Technology Resistant to humidity and contamination, which minimises drift (provides accurate readings), and extends the lifespan of the device, even in extreme environments
World’s smallest and lightest detector Comfortable and unobtrusive to wear
Market leading parts-per-billion (ppb) sensitivity Provides early warning when exposed to hazardous gases
Clear audio, visual and vibrating alarms system Ensures workers are immediately alerted to hazardous gases
CUB docking stations Provides USB communications, charging option, and calibration for the instrument

Technical specifications for the personal gas detector

Technical Specification Value/Information
Sensitivity  0.001 ppm or 0.1 ppm (depending on model)
Accuracy ±5% display reading + one digit
Response time <13>
Approvals

Europe:ATEX:CE,Ex II 1G,Ex ia IIC T4;-20oC ≤Ta≤ 55oC
IECEx: Ex ia IIC T4-20oC ≤Ta≤ 55oC
China: Ex ia IIC T4 -20oC ≤ Ta ≤ 55oC
US and Canadian approvals: Class I, II and III, Division I, and hazardous

Battery Battery life up to 16 hours
Battery charge time 4 hours
PID lamp options 10.6 eV
Data logging 30,000 readings
Communication USB 2.0
Alarm LEDs, audio, and vibrate
Sounder 86 dB @ 300mm
Pre-programmed TWA & STEL. Work exposure alarm levels on all models
Temperature Operating: -20 to 55 oC, -4 to 131 oF
Humidity handling: Fence Electrode Technology
Weight and dimensions 111g (3.91 oz) 61 × 66 × 59mm (2.4×2.6×2.3”)
Range ppm 0 – 5,000 ppm
Calibration 2 point calibration via docking station
Upgradeable

Upgrade ppm to ppb

IP Rating

Designed to IP65 (heavy rain)

LCD display

Back lit multi colour

Flow Rate

N/A (no pump)

Docking station options Charge only
Charge and USB communication
Charge, USB communication and calibration

For more information about the personal gas detector, contact us now.
