The world’s smallest and lightest personal VOC detector

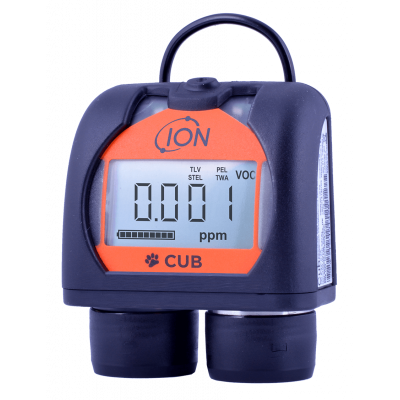

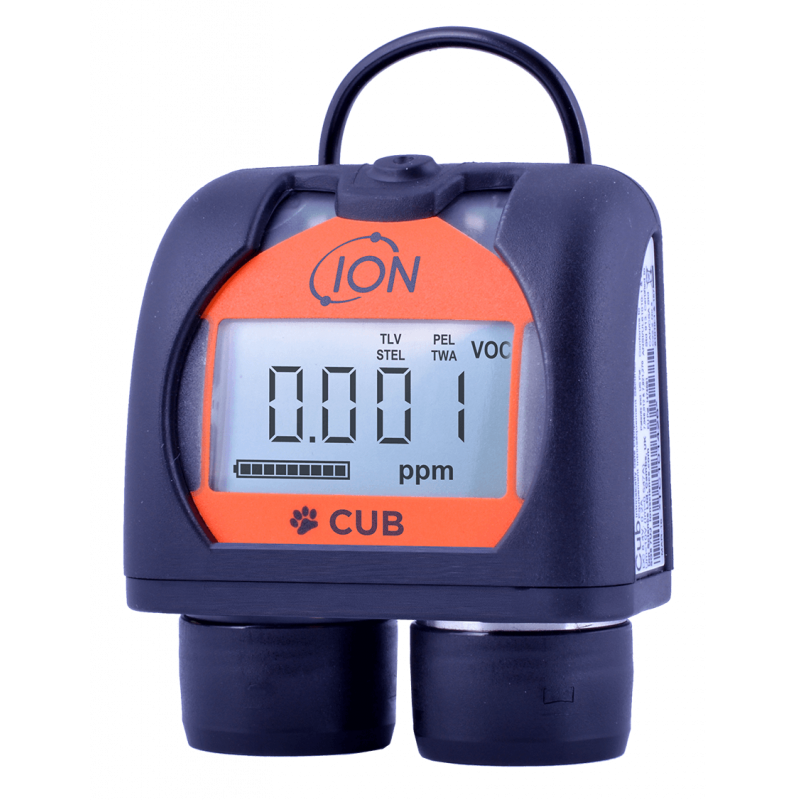

CUB [personal VOC detector]

Personal VOC detector

CUB, the personal VOC detector, is manufactured by Ion Science. The detector offers unrivalled sensitivity, the widest detection range, and can measures 480 selectable compounds. The personal gas detector is suitable to wear in harsh environments, and has ATEX, IECEx, and US and Canadian certifications.

Contact us now to ensure your workers’ safety


The personal VOC detector incorporates the best PID sensor in the market (independently verified), to ensure safety in the work environment. Comfortable and unobtrusive to wear, the detector has the widest range of detection: 0 to 5000 ppm.

The CUB is available as a standard instrument with 10.6 eV lamp. The detector detects a wide range of volatile organic compounds (VOC) to part-per-million (ppm) levels. The device can also be upgraded to part-per-billion (ppb) levels online, eliminating the hassle of sending the device back to the factory.

The CUB can be used in hazardous environments, and has a two year warranty if it’s registered online.

The personal VOC detector incorporates the following benefits:

Feature Benefit
Photoionization detection (PID) technology Provides fast and accurate detection of volatile organic compounds
Fence Electrode Technology Resistant to humidity and contamination, which minimises drift (provides accurate readings), and extends the lifespan of the device, even in extreme environments

World’s smallest and lightest detector

Comfortable and unobtrusive to wear
Market leading parts-per-billion (ppb) sensitivity Provides early warning when exposed to hazardous gases
Clear audio, visual and vibrating alarms system Ensures workers are immediately alerted to hazardous gases
CUB docking stations Provides USB communications, charging option, and calibration for the instrument

Technical specifications for the personal VOC detector

Technical Specification Value/Information
Sensitivity  0.001 ppm or 0.1 ppm (depending on model)
Accuracy ±5% display reading + one digit
Response time <13>
Approvals

Europe:ATEX:CE,Ex II 1G,Ex ia IIC T4;-20oC ≤Ta≤ 55oC
IECEx: Ex ia IIC T4-20oC ≤Ta≤ 55oC
China: Ex ia IIC T4 -20oC ≤ Ta ≤ 55oC
US and Canadian approvals: Class I, II and III, Division I, and hazardous

Battery Battery life up to 16 hours
Battery charge time 4 hours
PID lamp options  10.6 eV
Data logging 30,000 readings
Communication  USB 2.0
Alarm LEDs, audio, and vibrate
Sounder 86 dB @ 300m
Pre-programmed TWA & STEL. Work exposure alarm levels on all models
Temperature Operating: -20 to 55 oC, -4 to 131 oF
Humidity handling: Fence Electrode Technology
Weight and dimensions 111g (3.91 oz) 61 × 66 × 59mm (2.4×2.6×2.3”)
Range ppm 0 – 5,000 ppm
Calibration 2 point calibration via docking station
Upgradeable Upgrade ppm to ppb
IP Rating Designed to IP65 (heavy rain)
LCD display Back lit multi colour
Flow Rate N/A (no pump)
Docking station options Charge only
Charge and USB communication
Charge, USB communication and calibration
