3 Fixed PID gas detector

Falco, Titan, TVOC [Fixed PID gas detector]

Fixed PID gas detector
Fixed PID gas detector
Fixed PID gas detector

Ion Science manufactures and supplies 3 different types of fixed PID gas detector. Ion Science is the world’s largest PID technology and instrument manufacturer.

Ion Science manufactures the following fixed VOC gas detector:

  • Falco
  • TVOC
  • Titan

Contact us now for more information.

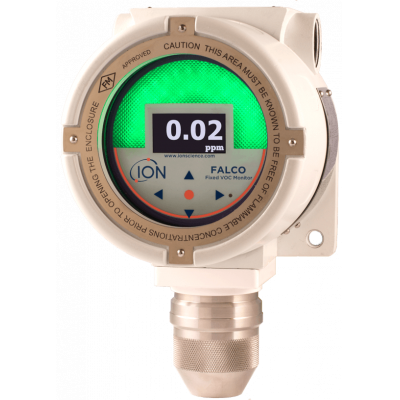

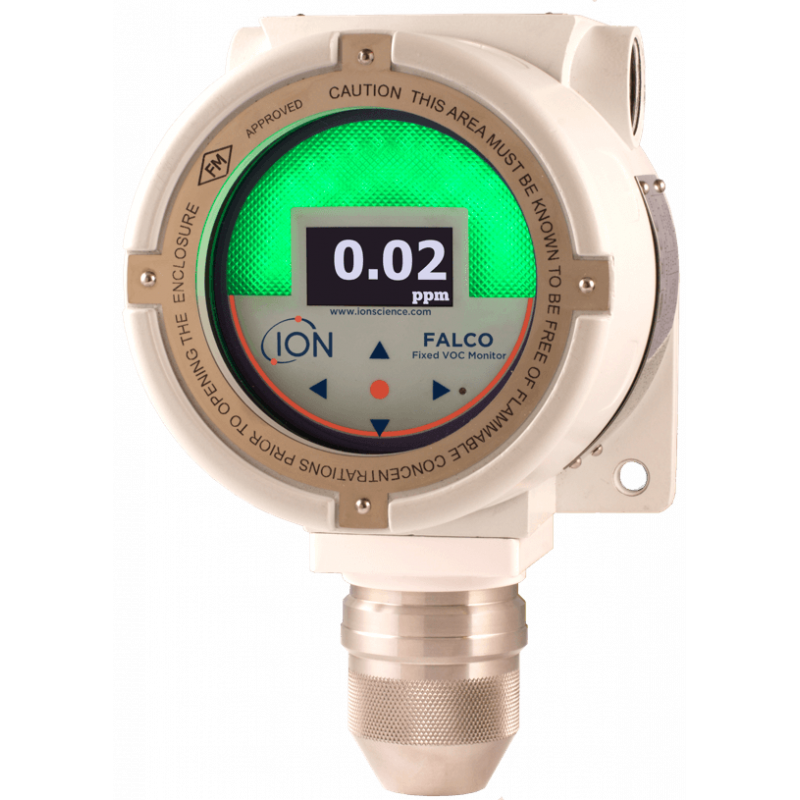

Falco: fixed PID gas detector

The Ex D certified gas detector provides the latest technology in the market. The detector offers ultimate flexibility and the highest accuracy internationally. The Falco is the only fixed gas detector designed for extreme weather. The device incorporates the patented Photoionization Detection (PID) technology for accurate measurements.

The ATEX approved VOC detector features the following benefits:

  • Typhoon Technology – Safeguards the sensor from condensing moisture, ensuring reliable reading in extreme weather
  • Fence Electrode Technology – Ensures the detector is resistant to humidity and contamination. This feature minimises drifts (which ensures accurate readings) and extends the lifespan of the device
  • Multi coloured LED display – Readings can be seen from a distance of 20 meters in sunlight, ensuring that workers and staff are clearly alerted to hazardous environment
  • Externally located intrinsically safe sensor – Enables quick and easy servicing, eliminating the need for hot work permit
  • Dual certifications – Enables servicing and calibration in hazardous environments whilst the power is switched on. This ensures that there are no interruptions in operations and that the staff members are always safe

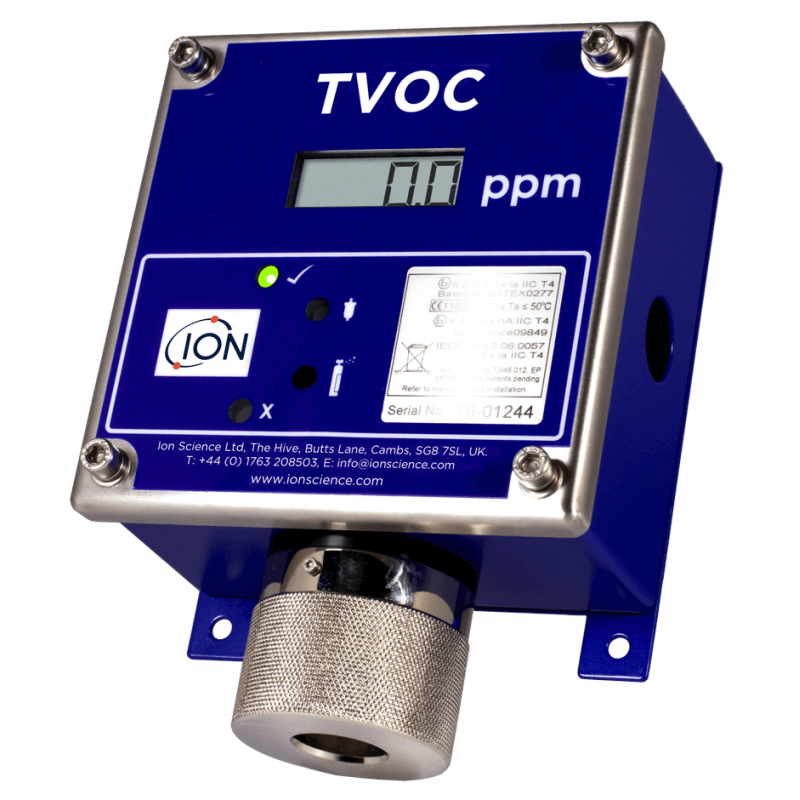

TVOC: Fixed PID gas detector

The fixed VOC gas detector provides continuous detection and measurements within minutes. The detector features the patented PID sensors and Fence Electrode Technology by Ion Science. The Fence Electrode Technology provides increased resistance to humidity and contamination.

The instrument has ATEX and IECEx approvals, which makes the device suitable for Zone 1 and Zone 2 hazardous areas. The robust TVOC is ideal to use in manufacturing and other industries.

The fixed VOC gas detector is easy to install, service and calibrate.

The fixed VOC gas detector has the following features

  • The PID technology is independently verified as the best performing PID in the market
  • Range: 0 to 10, 0 to 100 or 0 to 1000 ppm. Options available
  • Humidity resistant
  • Contamination prevention design for extended field operation
  • The variable duty cycle feature extends the products life span
  • Reliable diffusive monitoring – no pump required
  • Accurate results in all environmental conditions
  • The rugged design enables the device to withstand harsh environments
  • Large LCD display for clear readings
  • ATEX and IECEx approved
  • No hot work permit required
  • Easy to use – minimal training required
  • Easy access to the PID sensor for fast and simple servicing
  • Simple calibration procedure
  • Easily integrated into a DCS control system
  • Inexpensive consumables and parts
  • Two-year warranty when product is registered online

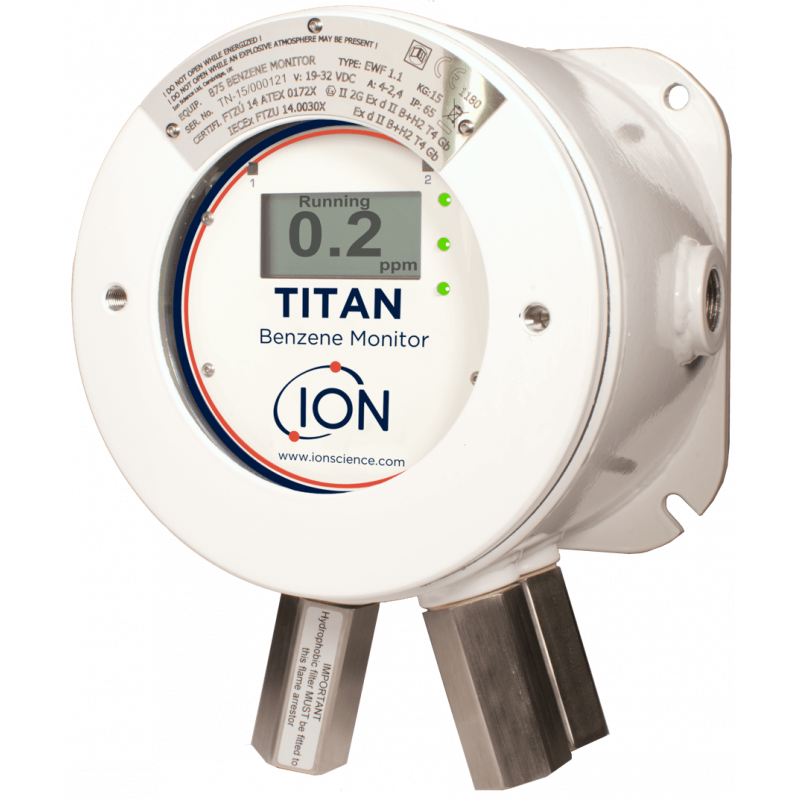

Titan: Fixed benzene detector

Titan is the first selective benzene fixed gas detector on the market. The fixed benzene detector incorporates the patented PID technology. This technology makes the detector resistant to humidity and contamination, ensuring optimal performance even in harsh environments.

 The Titan provides continuous, real-time benzene specific measurements. Mounted on the wall, the detector scans the environment and displays the current benzene level measurements. This function makes it possible to monitor for trends over time.

The benzene fixed PID gas detector has the following features

  • Fast and accurate detection of benzene to 0.1 ppm units
  • Detection range: 0 – 20 ppm
  • Minute by minute sampling provides continuous real-time data
  • Robust separation method ensures benzene-specific readings
  • The internally regulated heating system ensures stable operation at all temperatures
  • Clear display and visual alarms to indicate benzene levels
  • Two user-definable, independent alarm levels. This includes optional real-time STEL calculation
  • Alarm – Two relay outputs provide immediate warning
  • ATEX and IECE approval. Fulfils UL and CSA standards
  • Modular design for easy installation and servicing
  • Service-free operation for six months
  • Simple 2-button interface for navigation
  • Two-year warranty when product is registered online
  • The PID technology is independently verified as the best performing PID in the market.
  • Humidity resistant
  • Contamination prevention design for extended field operation
  • The detector is easy to install and service.

For more information on the fixed PID gas detectors, fill out the form below.
