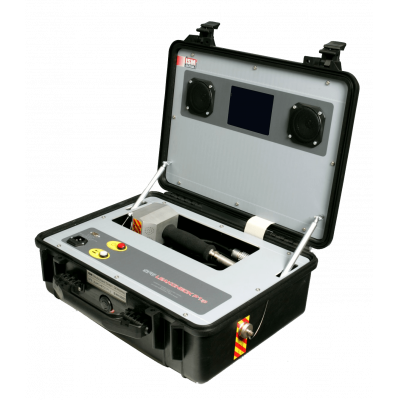

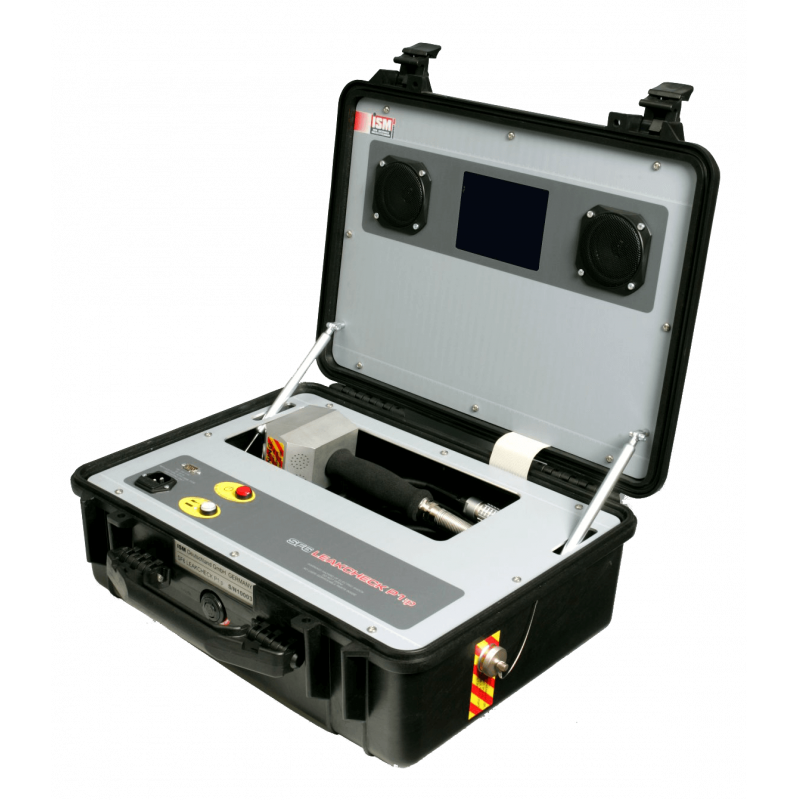

SF6 LeakCheck [SF6 gas detector manufacturer]

Ion Science, SF6 gas detector manufacturer

Ion Science is an SF6 gas detector manufacturer. The SF6 LeakCheck incorporates the award winning Negative Ion Capture (NIC) technology with a non radioactive source. The NIC technology enables the detector to provide accurate measurements and location for SF6 leaks in high voltage electrical switchgears.


The non radioactive source eliminates problems of registration, storage and transportation.

The detector does not get contaminated when exposed to 100% SF6 gas.

The SF6 gas detector manufacturer incorporates the following features:

  • High sensitivity – 1 x 10-8 ml/sec
  • Award winning Negative Ion Capture (NIC) technology
  • Rapid leak detection – 1 second response time and clear down
  • Does not get affected when exposed to large leaks and 100% SF6 gas
  • No regeneration period between readings
  • Choice of displaying unit – cc/sec, gm/yr and ppm
  • Non-radioactive source for easy storage and transportation
  • Easy to use – No training required
  • Lightweight – ergonomically designed handgun
  • Easy navigation - touch screen navigation
  • Simple data storage and printing for analysis
  • Reduced cost of ownership – No argon or other pressurised gases are required
  • Two year warranty when product is registered online

Specifications of the SF6 gas detector

Features Value/Information
Minimum principle Negative Ion Capture (NIC): a non-radioactive, non-restricting carriage. No licensing required.
Sensitivity Standard SF6, GasCheck P1 and LeakCheck P1:p. 1 x 10-7 ml/sec, 1 ppm, 0.01 gm/yr SF6. Highsense option. 1 x 10-8 ml/sec, 0.1 ppm, 0.001 gm/yr SF6.
Response T90 =<1>
Operation Lead acid battery, internal and fully protected. Recharge between 85-265 AC V, 50/60Hz
Alarm Audio and visual with an optional handset alarm
Measurement units Measures in ml/sec, gm/yr and ppm. Range: each unit 1:500. Accuracy: ± 5% of displayed leak rate or ± 2 digits. Repeatability: ± 1 digit.
Calibration CalCheck calibration
Data logging Over 500 data points with date and time stamp. Download data via RS232.
Temperature Storage: -10 to 60 oC (14 to 140 oF). Operating: 0 to 50 oC (32 to 122 oF).
Dimensions SF6 LeakCheck P1:p. Consol: 500 x 400 x 190 mm (19.7 x 15.7 x 7.5”). Shipped: 520 x 430 x 210 mm (20.5 x 16.9 x 8.3”)
Weight SF6 LeakCheck P1:p. Shipped 15 kg (33 lb).

For more information about the SF6 gas detector manufacturer and its products, contact us now.
