Time synchronized with NTP server from Galleon Systems

NTS-6002 and NTS-8000 [NTS-6002-GPS-MSF and NTS-8000-GPS-MSF]

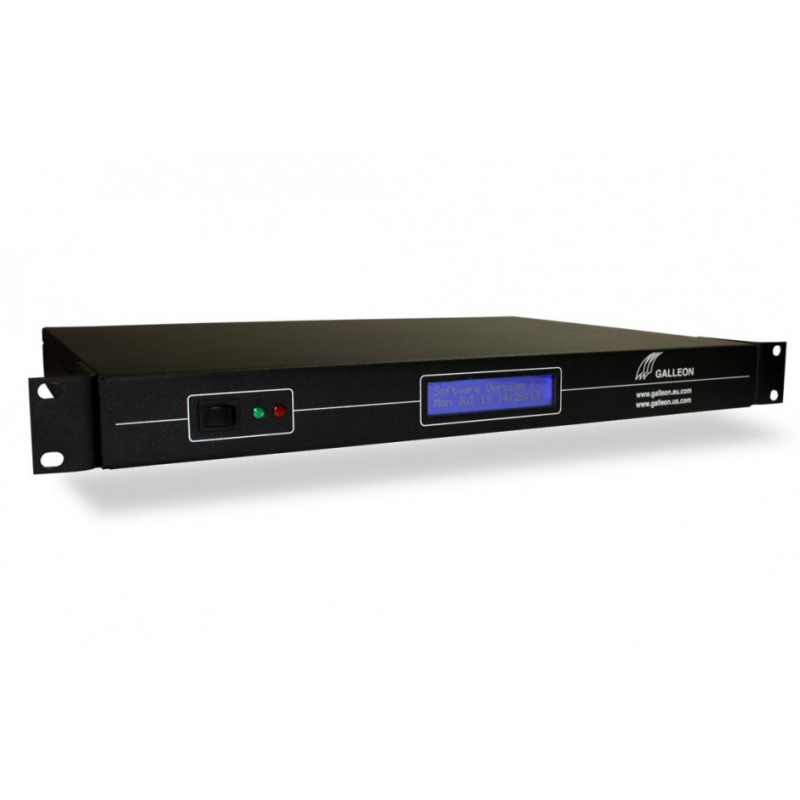

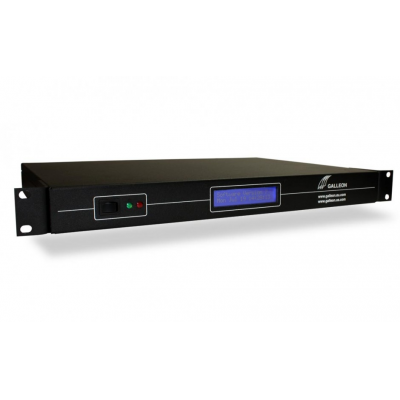

time synchronized with NTP server NTS-6002 front view

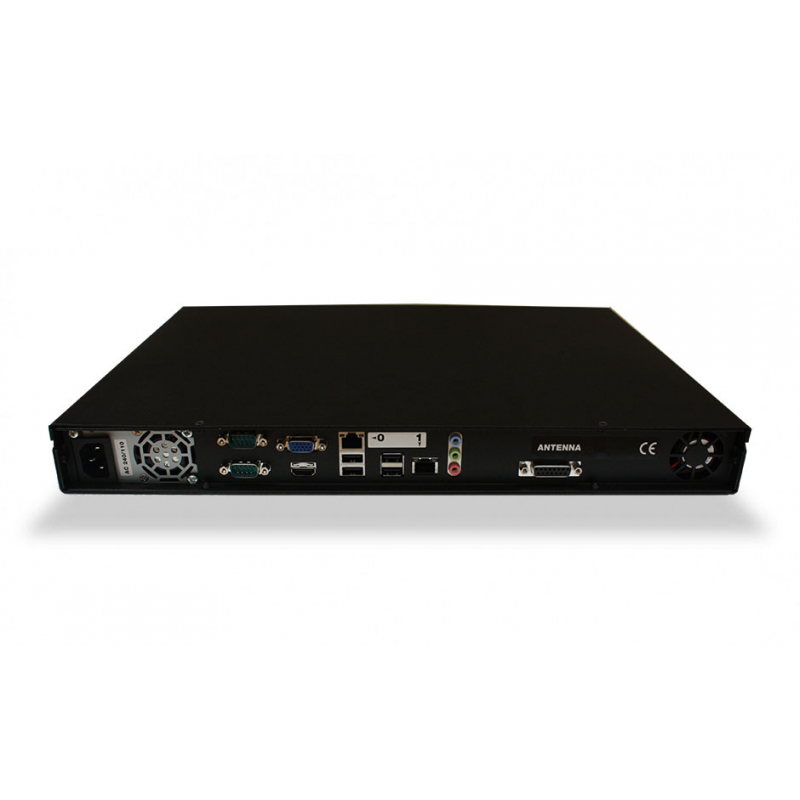

time synchronized with NTP server NTS-6002 rear view

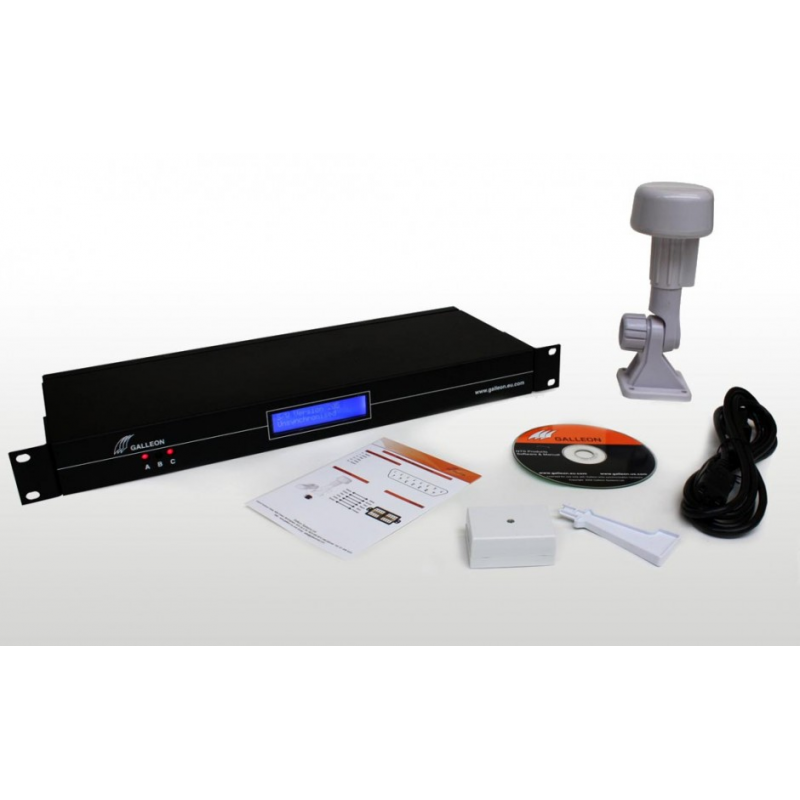

time synchronized with NTP server NTS-6002 box contents

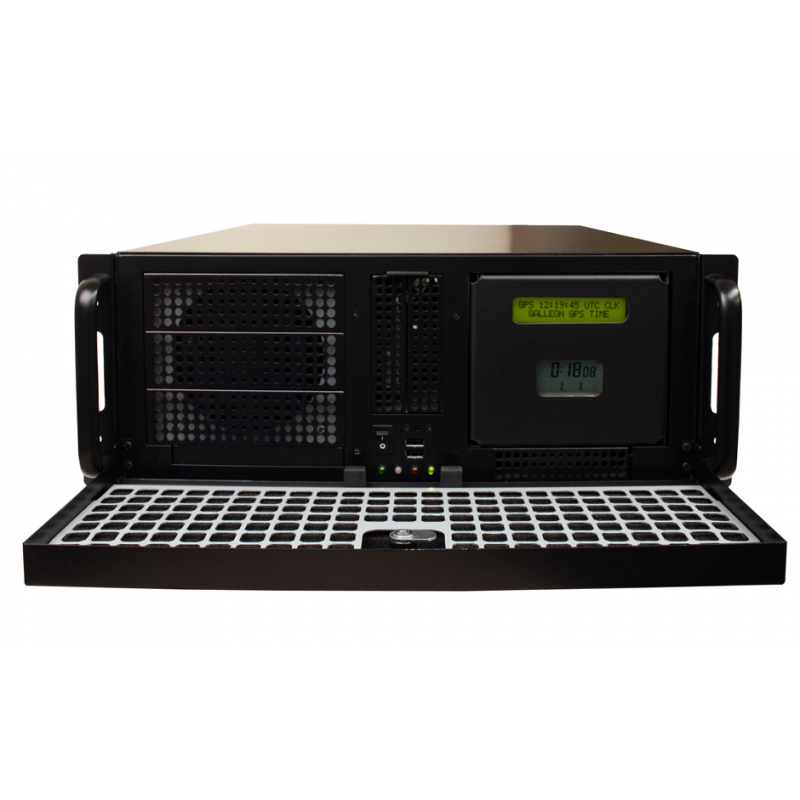

time synchronized with NTP server NTS-8000 front view

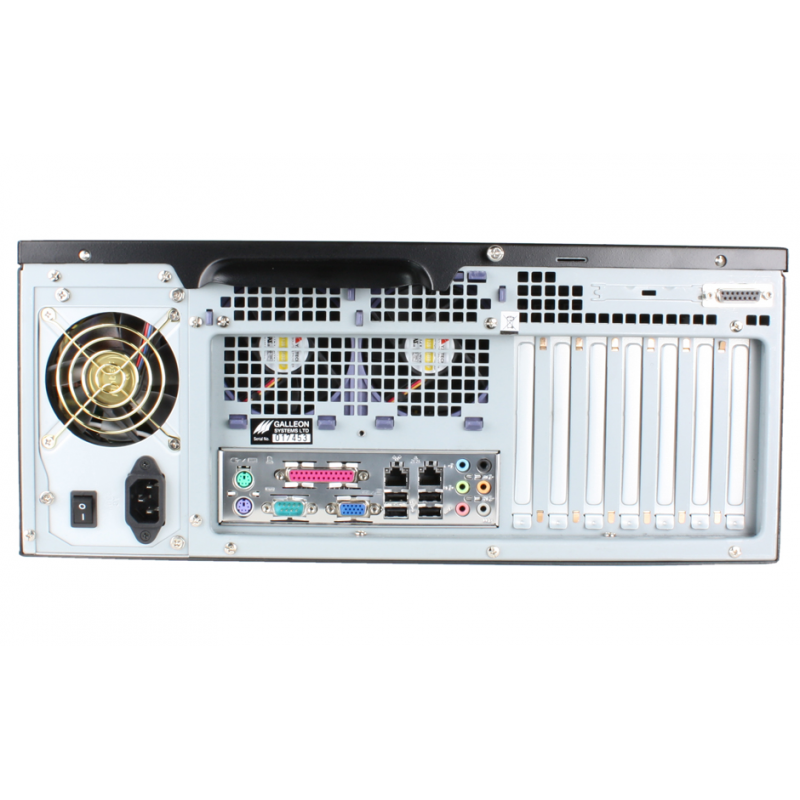

time synchronized with NTP server NTS-8000 rear view

Time synchronized with NTP servers is accurate, reliable and secure. Galleon NTP servers connect to GPS and radio sources to receive accurate time and deliver that time to the devices on your network.

You benefit from synchronised business operations, improved productivity and greater time awareness throughout your organisation.

Two types of NTP server are available:

  • NTS-6002: supplies time to two networks. Linux operating system.
  • NTS-8000: Supplies time to six networks. Windows operating system.

Contact Galleon for more information.


NTP time synchronization is accurate and secure

Galleon time servers ensure that time synchronized with NTP servers is highly accurate. A Galleon Systems NTP server has two antennae. One antenna receives time from 12 satellites, and the other receives time from a radio source. The server automatically uses the strongest time source, and if one source fails the other will compensate.

The server delivers accurate time to the devices connected to your network via Ethernet connection. Thousands of devices can be synchronised from a single server, so your whole organisation can work to the same time.

A Galleon Systems server is also superior to an Internet time server, because an Internet time server requires you to open a port in your firewall. A Galleon Systems server, on the other hand, sits within your firewall, which protects your network from cyber-attacks.

Benefits of a Galleon Systems NTP server

  • Easy to mount: fits in a 19-inch rack with your existing IT equipment.
  • Highly secure: doesn’t require an open port hole in your firewall.
  • Dual time source: automatically receives time from the strongest source.
  • Supports thousands of devices: a single server can synchronize your entire business.
  • Six-year warranty and lifetime customer support: you can purchase it with confidence.

Time synchronization server specifications

NTS-6002

NTS-8000

Receiver

GPS antenna

Radio antenna

GPS antenna

Radio antenna
Timing accuracy Network: ± 10 milliseconds, typical
GPS: <1>
Network: ± 12 milliseconds, typical
GPS: <1>

NTP time requests

>500,000 requests per minute >3,000 requests per minute

Supported networks

Two networks Six networks

Mount

19-inch rackmount 19-inch rackmount

Dimensions (height x width x depth)

45mm × 425mm × 309mm

Operating system

Linux

Windows

Protocols

NTP: v2 (RFC 1119), v3 (RFC 1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
NTP: v2 (RFC 1119), v3 (RFC1305), v4 (RFC 2131)
SNTP: v3 (RFC 1769), v4 (RFC 2030)
Network interface Standard 10/100/1000 Base-T, Dual RJ-45 Network Connections Multiple (up to 6) RJ-45 Network Connection 10/100 MBit
Product code NTS-6002-GPS-MSF NTS-8000-GPS-MSF

Contact Galleon for advice about time synchronized with NTP server.
