Actuator valve from UK is now available worldwide

actuator valve UK [actuator valve UK]

actuator valve from UK with switch box

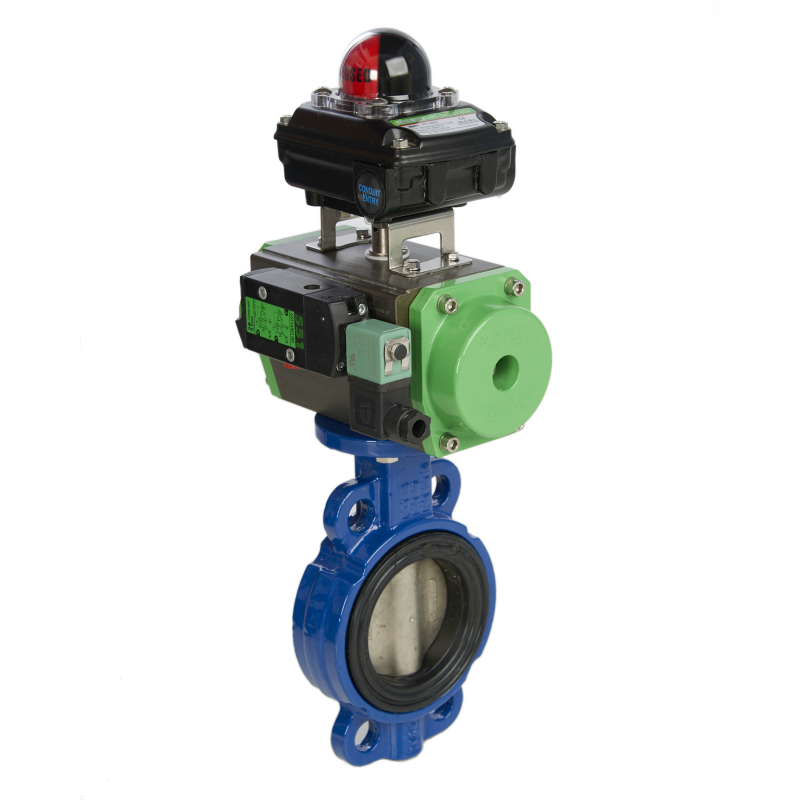

butterfly actuator valve from UK
blue actuator valve from UK

Omega Valves, distributors of actuator valve from UK, provide a cost-effective method for automating any industrial process. The wide range of options, materials and configurations enable the valve to be controlled by a button and monitored in real time.

The actuator eliminates the need for an operator to stand near the valves and operate them manually. The operator can now control the movement of the valve remotely, from the control room.


The actuator valve from UK can be mounted on the following valves

  • Gate valve
  • Globe valve
  • Plug valve
  • Ball valve
  • Butterfly valve

There are two types of actuators, pneumatic actuators and electric actuators.

The actuator valve from UK is available with the following types of valves

Type Benefit

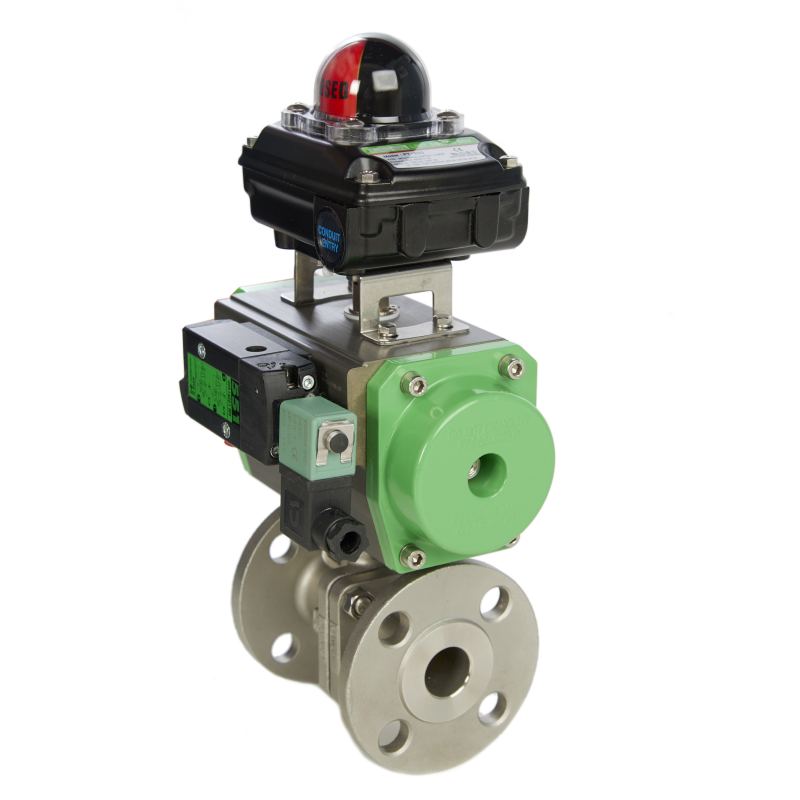

Pneumatic actuator with switch box The operator is informed when the valve is open or closed.

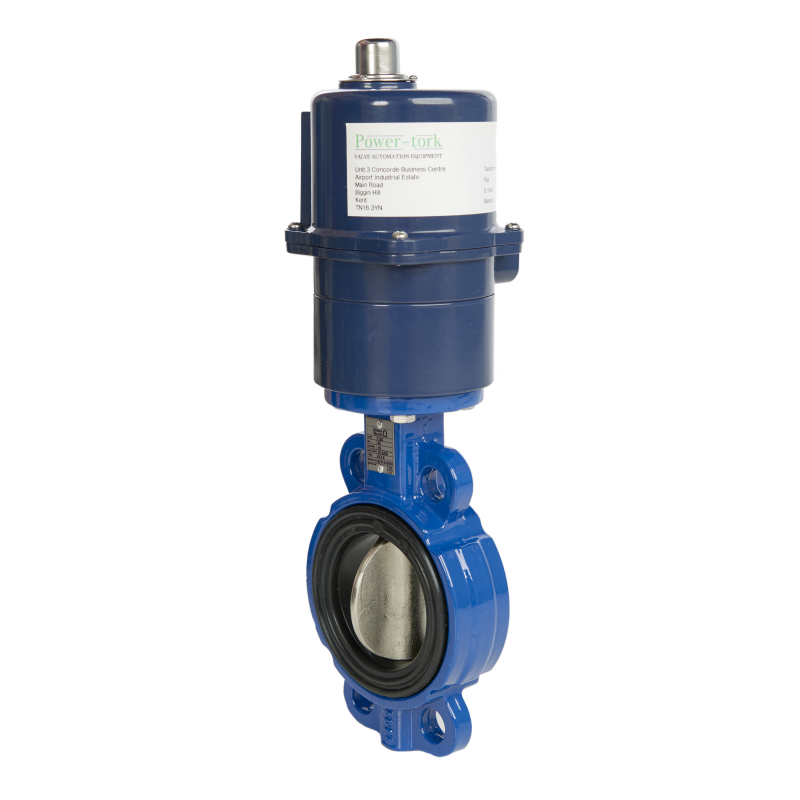

Electric Actuator with the positioning card The positioning cord controls the valve using a 4-20mA signal and sends the signal back to the control room.
Torque switches Switches prevent the electric motor from burning out at the end of the stroke as a result of continuous use.
Simple switch mechanism The mechanism makes it easy to open and close the valve.
Power 110VAC, 240VAC, 24VDC or 24VAC.
Battery back-up or spring return feature The feature ensures a fail-safe operation.
Enclosure The pneumatic and electric actuators are available to fulfil the ATEX requirements.

Factors to consider when selecting an actuated valve

  • The valve line pressure
  • The substance
  • Available instrument air
  • Line pressure and temperature
  • Valve operating torque
  • The environment the valve will be used in
  • Moisture levels

The actuator valve from UK is ideal for the following locations and environments

  • Apartment buildings
  • Offices
  • Hospitals
  • Manufacturing factories
  • Oil refineries and oil rigs
  • Power stations
  • Water treatment factories
  • Gas works
  • ATEX areas
  • Offshore locations

Omega Valves has the following actuated valve

  • Actuated ball valve
  • Actuated butterfly valve
  • Electric actuator
  • Stainless steel actuator
  • ATEX actuator
  • SIL 3 actuator
  • PTFE coated actuator
  • European manufacture actuator
  • E.U manufacture actuator
  • Rack and Pinion actuator
  • Scotch Yoke actuator
  • TU-CRE actuator

The electric actuator complies with the following standards and regulations

  • SO 9001, ISO 14001, OHSAS 18001
  • ATEX, NEMA, IEEE, RCC-E, SIL
  • ABS, CSA, BUREAU VERITAS, GERMANISCHER LLOYDS, GOST, INERIS, TÜV

The pneumatic actuator complies with the following standards and regulations

  • Quality System Management UNI EN ISO-9001:2008
  • Authorization to Export Russian Federation, Belarus, Kazakhstan TU-CRE
  • Declaration of E.S.H.R. Compliance Machinery Directive 2006/42/CE
  • SIL-3 Safety Integrity Level IEC EN 61508/61511
  • IP67 Protection Code Declaration EN 60529/A1:1999
  • Declaration of Conformity for Using in Explosive Environments (aluminium) ATEX 2014/34/UE
  • Declaration of Conformity for Using in Explosive Environments (stainless steel) ATEX 2014/34/UE
  • Declaration of Conformity Design, Manufacture and Testing EN 15714-3:2009

For more information on actuated valve, please get in touch with us now. We will be pleased to offer you a complete solution.
