Dry well calibrator for temperature measurement instruments

Dry well calibrator [CS and CSES series thermometer probe calibration service]

dry well calibrator
CS dry well calibrator
CSES dry well calibrator

Eurolec Instruments manufactures a range of dry well calibrators. The calibrators enable the verification and calibration of general thermometers, infrared thermometers and probes.

Eurolec Instruments has three series of dry well calibration source. The CS series of temperature calibration source, the CS series of high temperature calibration source and the CSES series of calibration source.

All calibration sources are standard with 6 probe holes and a black-body for Infrared thermometers. Customized probe holes are also available.

The dry block calibration source ensures fulfilment of the temperature measurement standards, regulations and guidelines of your country.


CS series of temperature calibration source

Eurolec Instrument has three types of dry well calibrators in this series. The CS173, CS174 and CS175. The CS174 and CS175 additionally have the CS174-IN and CS175-IN calibrators, which feature the customized probe holes.

All calibrators in the CS series provide high accuracy and stable temperature output. The calibrators are ideal for the servicing and calibration of reference thermometers, infrared thermometers and general-purpose thermometers.

Features of the CS series of dry well calibrator

  • Standard 6-hole probe insert
  • Black body for Infra-red thermometers
  • PID controller with platinum film sensor
  • High accuracy and stable temperature source
  • User adjustable temperature
  • User adjustable °C or °F display option
  • Standard RS232 output with an optional USB connection
  • Optional 2-point accuracy check
  • Test point for reference thermometer
  • Low temperature calibration with the CS175 and CS175- IN calibrators

For a complete reference, verification and calibration system, contact us now.

CS series of high temperature calibration sources

Eurolec Instruments has two dry well calibrators in this series. The CS350 high temperature calibrator and the CS650 high temperature calibrator.

The calibrators reach high temperature levels. This enables the calibration of thermometers, infrared thermometers and probe thermometers at extended ranges.

Features of the high temperature calibration source

  • Front and rear probe holes
  • PID controller with platinum film sensor
  • High accuracy and stable temperature source
  • User adjustable temperature
  • User adjustable °C or °F display option
  • Standard RS232 output with optional USB connection
  • Test point for reference thermometer

For a complete reference, verification and calibration system, contact us now.

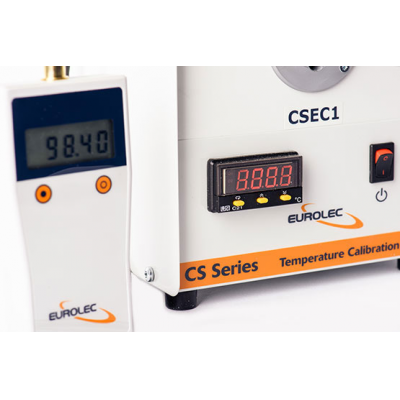

CSEC series of temperature calibration source

Eurolec Instrument has three types of dry well calibrators in this series. The CSEC1, CSEC2 and CSEC3.

The CSEC Series is an economic range of temperature calibration sources.

All calibrators in the CSEC series provide high accuracy and stable temperature output. The calibrators are ideal for the servicing and calibration of probe thermometers and general-purpose thermometers.

Features of the CSEC series of dry well calibrator

  • Ideal for probe thermometers
  • Standard front 7-hole probe insert
  • PID controller with platinum film sensor
  • High accuracy and stable temperature source
  • User adjustable temperature
  • User adjustable °C or °F display option

For a complete reference, verification and calibration system, contact us now.
