Manufacturer of temperature calibration equipment | Eurolec Instruments CS and CSES calibration sources

CS and CSEC series thermometer probe calibration service [manufacturer of temperature calibration equipment]

manufacturer of temperature calibration equipment

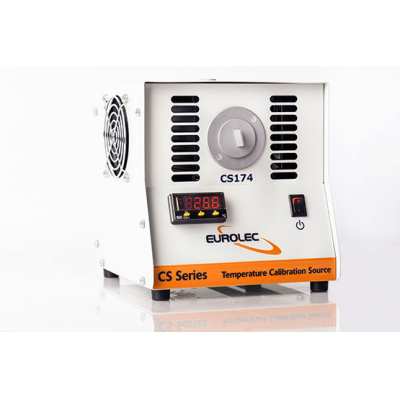

Eurolec Instruments is a market leading manufacturer of temperature calibration equipment. The CS and CSEC series is a range of cost-effective and accurate temperature calibration sources for probe thermometers.

The dry-well temperature calibrator features a range of temperature calibration sources suitable for laboratory and on-site thermometer calibration. The series covers temperatures between -20°C and 650°C, which makes it suitable for a wide range of applications.

The dry-block calibration source features a PID Controller with a platinum film sensor which makes it reliable and accurate. The CS and CSEC Series thermometer probes comply with the quality standards such as ISO9001 and HACCP.


The CS series is created by Eurolec Instruments, a manufacturer of temperature calibration equipment. The technical information is:

Specification CS173 CS174 CS174-IN CS175 CS175-IN
Range +30°C to +200°C 40°C below ambient to +85°C 40°C below ambient to +85°C 40°C below ambient to +85°C 40°C below ambient to +85°C
Accuracy 0.1°C 0.1°C 0.1°C 0.01°C 0.01°C
Emissivity ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit ± 0.05°C ± 1 digit ± 0.05°C ± 1 digit
Stability Better than 0.03°C Better than 0.03°C Better than 0.03°C Better than 0.03°C Better than 0.03°C
Heating time 30°C to 150°C, 15 minutes 20°C to 60°C, 6 minutes 20°C to 60°C, 6 minutes 20°C to 150°C, 15 minutes 20°C to 150°C, 15 minutes
Cooling time Non-forced 20°C to 0°C, 7 minutes 20°C to 0°C, 7 minutes 20°C to 0°C, 7 minutes 20°C to 0°C, 7 minutes
Power supply 110vAC or 220vAC 110vAC or 220vAC 110vAC or 220vAC 110vAC or 220vAC 110vAC or 220vAC
Operating temperature +5°C to +40°C +5°C to +40°C +5°C to +40°C +5°C to +40°C +5°C to +40°C
Weight 4kg 4.2kg 4.2kg 4.2kg 4.2kg
Dimensions 196mm x 179mm x 180mm 196mm x 179mm x 180mm 196mm x 179mm x 180mm 196mm x 179mm x 180mm 196mm x 179mm x 180mm

The CS high temperature series is created by Eurolec Instruments, a manufacturer of temperature calibration equipment.. The technical information is:

Specification CS350 CS650
Range +30°C to +350°C +30°C to +650°C
Accuracy 0.1°C 0.1°C
Emissivity

± 0.5°C 30°C to +350°C

± 1°C to 200°C

± 0.7°C 30°C to +200°C

± 1.5°C to 200°C

Stability Better than 0.1°C Better than 0.1°C
Heating time 15 minutes 25 minutes
Cooling time Non-forced natural cooling Non-forced natural cooling
Power supply Non-forced natural cooling
110vAC or 220vAC
Non-forced natural cooling
110vAC or 220vAC
Operating temperature +5°C to +40°C +5°C to +40°C
Weight 5kg 5kg
Dimensions 253mm x 209mm x 180mm 253mm x 209mm x 180mm

The CSEC series is created by Eurolec Instruments, a manufacturer of temperature calibration equipment. The technical information is:

Specification CSEC1 CSEC2 CSEC3
Range +30°C to +200°C 30°C below ambient to +85°C 30°C below ambient (minimum -10°C) to +105°C
Resolution 0.1°C 0.1°C 0.1°C
Accuracy ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit ± 0.2°C ± 1 digit
Stability Better than 0.03°C Better than 0.03°C Better than 0.03°C
Power supply 220vAC 110vAC or 220vAC 110vAC or 220vAC
Operating temperature +5°C to +40°C +5°C to +40°C +5°C to +40°C
Weight 3kg 2.7kg 2.7kg
Dimensions 172mm x 164mm x 130mm 172mm x 164mm x 130mm 172mm x 164mm x 130mm

Contact Eurolec Instrumentation Ltd
