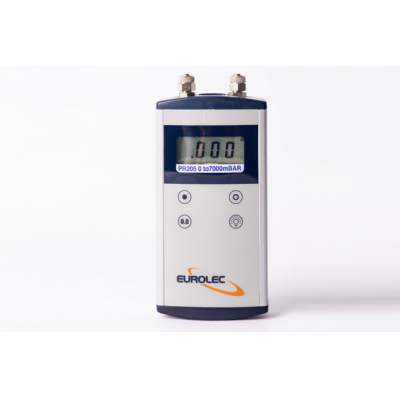

PC Mano Series Manometer [handheld digital manometer]
Eurolec Instrumentation is a market leading manufacturer of handheld digital manometers.
The PC Mano Series manometer is a range of compact, high quality, professional, and lightweight handheld manometer. They are suitable for gauge, vacuum, differential, and absolute pressure measurements.
The portable manometers cover differential pressure measurements ranging from 0-20mBar to 0-7000mBar (7Bar). This makes them ideal for a range of applications, including process industry pressure measurements, tank level measurements, HVAC, measuring gas flow, HVAC, air flow, and clean rooms.
The PC Mano Series instruments have a battery that can last up to 350 hours, auto-shutdown, auto-ranging, a backlit display, and a splashproof screen.
Each device comes with a five-year warranty.
Wide range | A variety of professional, compact, and lightweight thermometers and probes provide features useful for many different applications. |
Smooth, water-proof surface | A hygienic surface makes it ideal for food manufacturing, HACCP compliance, and pharmaceutical and laboratory environments. |
Long battery life | It can last up to 350 hours, and can enable auto-shutdown to conserve battery life. |
Auto-ranging | It can change the settings itself which means the user does not need to do it manually. |
Backlit display | A simple-to-use display makes it suitable for all environments, situations, and applications. It also saves power. |
Compact | It is small and compact at 137mm x 69mm x 27mm. |
Wide range of pressure measurements | A differential pressure range covering 0 - 20mBar up to 0 - 7000mBar (7Bar) makes it suitable for a wide range of applications and environments. |
Guaranteed quality |
A 5-year warranty guarantees it is a future investment. |
Eurolec Instruments manufactures the PC Mano P1, P2, P3, P4, P5, and P6.
Specification | PC Mano P1 | PC Mano P2 | PC Mano P3 | PC Mano P4 | PC Mano P5 | PC Mano P6 |
Instrument type |
Handheld Manometer |
Handheld Manometer |
Handheld Manometer |
Handheld Manometer |
Handheld Manometer |
Handheld Manometer |
Case type |
Lightweight water-proof case |
Lightweight water-proof case |
Lightweight water-proof case |
Lightweight water-proof case |
Lightweight water-proof case |
Lightweight water-proof case |
Range | 0 – 20mBaR differential | 0 – 100mBaR differential | 0 – 500mBaR differential | 0 – 1000mBaR differential | 0 – 2000mBaR differential |
0 – 7000mBaR differential |
Resolution | 0.01 | 0.01/0.1 | 0.1/1 | 0.1/1 | 0.1/1 | 0.001/0.01 |
Units | mBar, Pa, inH20 | mBar, Pa, inH20 | mBar, Pa, inH20, PSI | mBar, Pa, inH20, PSI | mBar, Pa, inH20, PSI | mBar, Pa, inH20, PSI |
Accuracy |
± 0.25% full scale ± 1 digit |
± 0.25% full scale ± 1 digit |
± 0.25% full scale ± 1 digit |
± 0.25% full scale ± 1 digit |
± 0.25% full scale ± 1 digit |
± 0.25% full scale ± 1 digit |
Maximum Overpressure | 50mBar | 750mBar | 2000mBar | 2000mBar | 4000mBar | 10 Bar |
Power Supply | 9v PP3 (MN1604) | 9v PP3 (MN1604) | 9v PP3 (MN1604) | 9v PP3 (MN1604) | 9v PP3 (MN1604) | 9v PP3 (MN1604) |
Operating Temperature | 5°C to +40°C | 5°C to +40°C | 5°C to +40°C | 5°C to +40°C | 5°C to +40°C | 5°C to +40°C |
Dimensions | 137mm x 69mm x 27mm | 137mm x 69mm x 27mm | 137mm x 69mm x 27mm | 137mm x 69mm x 27mm | 137mm x 69mm x 27mm | 137mm x 69mm x 27mm |
